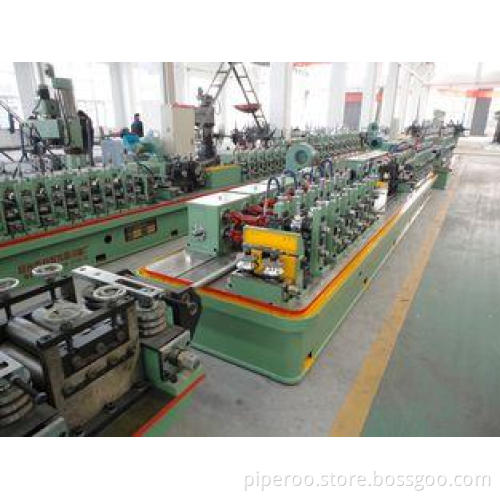

Straight seam welded pipe mill for round pipes, square pipes and rectangle pipes
Tube Mill, Steel Pipe Production Line, Pipe Mill
1. To make steel pipe O.D. from 0.3 to 11inch(8mm to 273mm)
2. Wall thickness from 0.3 to 12mm.
The complete line include the following device:
1. Double side Uncoiler
2. Hoop cage or Horizontal Accumulator
3. Main Machine:
3.1. Forming Machine
3.2. Roller System of Forming
3.3. Seam Guide
3.4. High Frequency Induction Welding Machine
3.5. Roller System for Moving
3.6. Burr Removing Frame (Inside and outside Burr )
3.7. Water Cooling System
3.8. Sizing Machine
3.9. Roller System of Leveling
3.10. Speed Testing Wheel
3.11. Turkish Frame
4. Auto Flying Saw Controlled by Computer
5. Run out table
6. Electric Control Equipment
7. High Frequency Welding Machine
|
Description |
ZG45 |
ZG60 |
|
Diameter of welded tubes |
Φ13-50mm |
Φ16-63mm |
|
Wall thickness of welded tubes |
0.8-2.0mm |
1.6-3.0mm |
|
Speed of tube welding |
20-75M/min |
20-65M/min |
|
Power of major motor |
75KW |
90KW |
|
Power of high frequency welder |
100KW |
200KW |
|
Description |
ZG50 tube mill line |
|
Diameter of welded tubes |
Φ15-63.5mm |
|
Wall thickness of welded tubes |
0.8-2.5mm |
|
Speed of tube welding |
40-80M/min |
|
Power of major motor |
110KW |
|
Power of high frequency welder |
150KW |
|
Description |
ZG60 tube mill line |
|
Diameter of welded tubes |
Φ16-63.5mm |
|
Wall thickness of welded tubes |
1.0-3.0mm |
|
Speed of tube welding |
40-80M/min |
|
Power of major motor |
132KW |
|
Power of high frequency welder |
200KW |
Basic componets & Work flow:
Uncoiler→Shearing and butt-welder→Vertical-type accumulator→Forming,welding,sizing machine→Computer cutting saw→Run-out table
