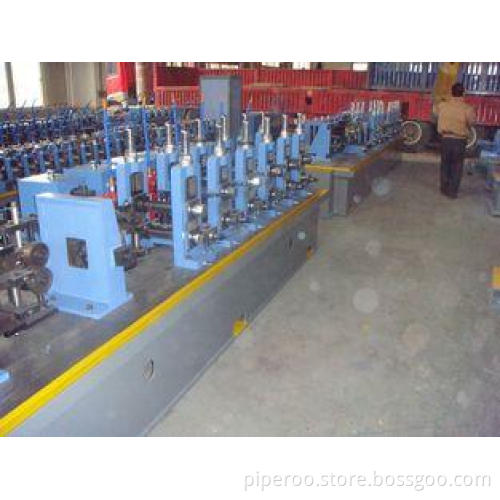

Precision high frequency Longitudinal welded pipe mill line
Tube Mill, Steel Pipe Production Line, Pipe Mill
1. To make steel pipe O.D. from 0.3 to 11inch(8mm to 273mm)
2. Wall thickness from 0.3 to 12mm.
The complete line include the following device:
1. Double side Uncoiler
2. Hoop cage or Horizontal Accumulator
3. Main Machine:
3.1. Forming Machine
3.2. Roller System of Forming
3.3. Seam Guide
3.4. High Frequency Induction Welding Machine
3.5. Roller System for Moving
3.6. Burr Removing Frame (Inside and outside Burr )
3.7. Water Cooling System
3.8. Sizing Machine
3.9. Roller System of Leveling
3.10. Speed Testing Wheel
3.11. Turkish Frame
4. Auto Flying Saw Controlled by Computer
5. Run out table
6. Electric Control Equipment
7. High Frequency Welding Machine
The technical parameters of Precision High Frequency Longitudinal Welded Pipe Mill line:
|
Equipment Type |
Outside Diameter(mm) |
Thickness (mm) |
Production Rate (m/min) |
|
ZY16 |
7.6-16 |
0.3-1.0 |
0-100 |
|
ZY20 |
10-25 |
0.3-1.5 |
0-100 |
|
ZY32 |
13-38 |
0.6-1.8 |
0-100 |
|
ZY45 |
16-50 |
0.7-2.0 |
0-90 |
|
ZY50 |
20-63.5 |
0.8-3.0 |
0-80 |
|
ZY60 |
25-76 |
1.0-3.2 |
0-80 |
|
ZY76 |
32-89 |
1.2-3.75 |
0-80 |
|
ZY89 |
35-100 |
1.2-4.5 |
0-70 |
|
ZY125 |
50-130 |
2.0-5.0 |
0-60 |
|
ZY165 |
76-165 |
2.0-6.0 |
0-50 |
|
ZY219 |
89-219 |
3.0-8.0 |
0-50 |
|
ZY273 |
100-273 |
4.0-12.0 |
0-45 |
|
ZY325 |
89-325 |
3.0-12.7 |
0-40 |
|
ZY406 |
114-406 |
4.0-16.0 |
0-40 |
|
ZY508 |
219-508 |
4.0-19.1 |
0-40 |
|
ZY610 |
219-610 |
4.0-19.1 |
0-40 |
|
ZY660 |
219-660 |
4.0-22.0 |
0-40 |
