Straight Seam Welded Pipe Mill , ZG45 Tube Mill Line for Round / Square Pipes and Rectangle Pipes

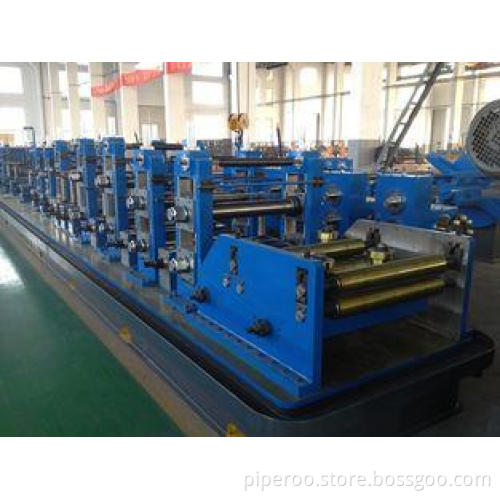

Straight seam welded pipe mill for round pipes, square pipes and rectangle pipes

Tube Mill, Steel Pipe Production Line, Pipe Mill
1. To make steel pipe O.D. from 0.3 to 11inch(8mm to 273mm)
2. Wall thickness from 0.3 to 12mm.

The complete line include the following device:

1. Double side Uncoiler

2. Hoop cage or Horizontal Accumulator

3. Main Machine:

3.1. Forming Machine

3.2. Roller System of Forming

3.3. Seam Guide

3.4. High Frequency Induction Welding Machine

3.5. Roller System for Moving

3.6. Burr Removing Frame (Inside and outside Burr )

3.7. Water Cooling System

3.8. Sizing Machine

3.9. Roller System of Leveling

3.10. Speed Testing Wheel

3.11. Turkish Frame

4. Auto Flying Saw Controlled by Computer

5. Run out table

6. Electric Control Equipment

7. High Frequency Welding Machine

Main Technical Parameters of the machine

Work flow of the pipe making machine:

Raw material (steel coil) → decoiling→ shearing and welding→ material accumulating → non-power leveling →forming milling →high frequency welding →removing burrs outside of weld seam →cooling →sizing →rough straightening → fixed length cutting →finishing pipe
