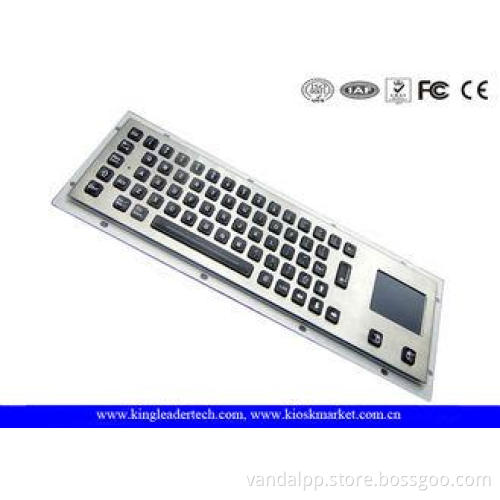

Customizable Illuminated Metal Keyboard High Resistant With Integrated Touchpad
PN:MKB-64A-TP-BL
Key Features:
1) Robust construction, high resistance against vandalism
2) with integrated touchpad;
3) Panel mount, installing from the rear side
4) Protruding full travel(2.0mm)keys with laser-etched legend, excellent tactile feedback
5) Specially designed to operate in harsh and low-lit environments
6) 65 LED individually-lit keys
7) Dust-proof and liquid-proof, meet IP65 requirement after properly mounted
8) PS/2 or USB interface for option
9) Customizable layout upon customer’s request
|
Specifications |
|
|
Material |
Front panel & Keys: Brushed stainless steel |
|
Back panel: Aluminum alloy |
|
|
Back panel: Aluminum alloy |
|
|
Electrical Data |
Power supply voltage: DC 5 V 5% |
|
Current rating: 20 mA |
|
|
Interface: USB or PS2 |
|
|
EMC compliant. |
|
|
FCC: Part 15, class B |
|
|
Safety: EN 60950, CE compliant |
|
|
Environmental Characteristics |
Operating temperature: -20 C to + 60 C |
|
Storage temperature: - 40 C to + 80 C |
|
|
Saline mist: 96 hours, IEC 60512-6 |
|
|
Damp heat test at + 40 C: 21 days, IEC 60512-6 |
|
|
Dry heat test at + 85 C: 10 days, IEC 60512-6 |
|
|
Mechanical Data |
Actuation force for key:120±15g |
|
Key travel: 2.0mm |
|
|
Lifetime (cycles): Min 5, 000, 000 actuations |
|
|
Sealing protection: IP65/NEMA4X from the front |
|
|
Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 |
|
|
Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4 |
|
|
Touchpad |
Power supply voltage: 5 VDC ± 10% |
|
Current rating (active mode): 17 mA |
|
|
Interface: PS2 or USB |
|
|
X/Y position sensing resolution: 40 counts/mm |
|
|
X/Y position reporting: Relative |
|
|
Tracking speed: Maximum 1, 016 m/sec |
|
|
Operation system |
PS2: Win NT4, 98SE, 98ME, 2000, XP |
|
USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX |
|
|
Color |
Keycap:black, grey or silver |
|
Backlight:blue, green or red |
|
|
Weight and Dimension |
Weight: 1.80kg |
|
Dimension: Front panel: 400.0x124.0x22.2mm |
|
