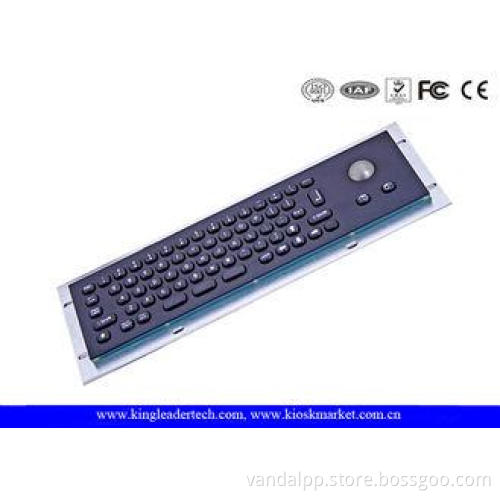

66 Keys Black Metal Keyboard Aluminum Alloy Back Panel With Optical Trackball
PN:MKB-66A-TB-MB
Key Features:
-Built from stainless steel, high vandal-proof
-66 keys(among them, 3 spacebar keys), compact size with integrated optical trackball, panel mount
-Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback
-Specially designed to operate in harsh environments, making it ideal for kiosks and other applications in public places.
-Electroplated black color
-Dust-proof and liquid-proof, meet IP65 requirement
-PS/2 or USB interface
-Customizable layout
|
Specifications |
|
|
Material |
Front panel & Keys: Brushed stainless steel |
|
Back panel: Aluminum alloy |
|
|
Trackball: Stainless steel(Dia: 25mm) |
|
|
Electrical Data |
Power supply voltage: DC 5 V 5% |
|
Current rating: 20 mA |
|
|
Interface: USB or PS2 |
|
|
EMC compliant. |
|
|
FCC: Part 15, class B |
|
|
Safety: EN 60950, CE compliant |
|
|
Environmental Characteristics |
Operating temperature: -20 C to + 60 C |
|
Storage temperature: - 40 C to + 80 C |
|
|
Saline mist: 96 hours, IEC 60512-6 |
|
|
Damp heat test at + 40 C: 21 days, IEC 60512-6 |
|
|
Dry heat test at + 85 C: 10 days, IEC 60512-6 |
|
|
Mechanical Data |
Actuation force for key:120±15g |
|
Key travel: 2.0mm |
|
|
Lifetime (cycles): Min 5, 000, 000 actuations |
|
|
Sealing protection: IP65/NEMA4X from the front |
|
|
Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 |
|
|
Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4 |
|
|
Operation system |
PS2: Win NT4, 98SE, 98ME, 2000, XP |
|
USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX |
|
|
Weight and Dimension |
Weight: 1.80kg |
|
Dimension: Thickness: 33.6 mm (to where the tallest component is) |
|
