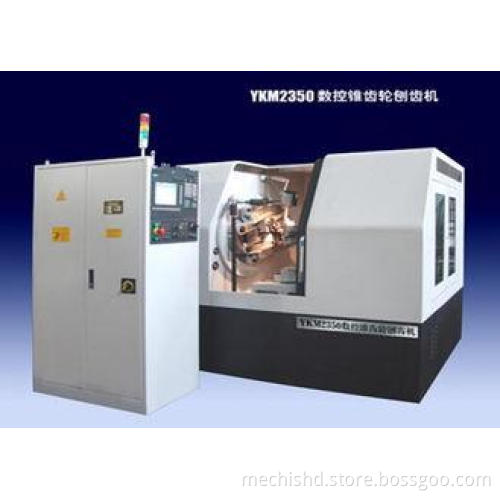

High Precision Bevel CNC Gear Shaping Machine , 4 Axis NC Machine Tool System
Quick Detail:
This machine is used for processing of straight bevel gears, and is suitable for various machine manufacturing batch and single piece and small batch production.
The machine adopts rolling cut principle, generating gear machined gear and plane reciprocating motion form each other repeatedly relative rolling to achieve cutting.
Description:
1. of the four axis NC machine tool system, namely the cradle rotating (X axis), the rotation of the workpiece (Y axis), bed saddle feed (Z axis), knife reciprocating (S axis).
2. The roll and workpiece spindle is driven by a servo motor and high precision worm drive.
3．Ball screw to realize the bed saddle movement of feed drive servo motor
4．Frequency conversion motor drive connecting rod mechanism, realize the knife reciprocating motion.
5．The machine configuration Siemens (SIEMENS), Germany 802DSL CNC and servo system.
6．This machine is equipped with sealing electrical control cabinet and air conditioning.
7．The machining of straight bevel gear precision can reach GB6.
|
The processed workpiece size |
|||
|
Maximum workpiece diameter |
mm |
500 |
|
|
The largest processing module |
mm |
10 |
|
|
Maximum workpiece cone distance |
mm |
250 |
|
|
Maximum workpiece length of tooth |
mm |
85 |
|
|
The root cone angle |
|
80° |
|
|
The maximum transmission ratio (axial angle is 90 °) |
|
1:8 |
|
|
The tooth number range |
|
10~200 |
|
|
The transmission ratio is 1:1 α =20 ° the minimum number of teeth |
|
15 |
|
|
justification range |
|||
|
The largest knife adjustment angle |
|
8º |
|
|
Distance spindle to machine workpiece center |
mm |
70~380 |
|
|
Plane reciprocating stroke count per minute |
|
98~500 |
|
|
The processing time required for each tooth |
sec |
16.1~100 |
|
|
Machine Location |
mm |
40(From machine center forward) 100(From machine center back) |
|
|
The maximum swing angle of shaking table |
|
30º(Engraved above the zero line) 30º(The following zero engraved lines) |
|
|
chief axis |
|||
|
Taper of spindle bore |
|
1:20 |
|
|
Spindle hole big end diameter |
mm |
100 |
|
|
Spindle Kong Tongkong |
mm |
78 |
|
|
Other |
|||
|
Main motor power |
power |
kw |
3 |
|
speed |
rpm |
800~1300 |
|
|
Total power of machine tool |
KVA |
20 |
|
|
Machine dimensions (length * width * height) |
mm |
2400×1800×1800 |
|
|
|
T |
8 |
|
