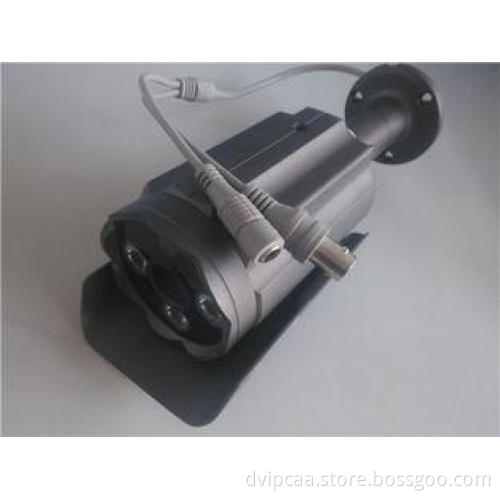

Professional Long Distance Bullet AHD CCTV Camera Surveilla
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen, China |
|---|
1.3Megapixel AHD CCTV Camera Use HD Water-proof Digital Remote Low Illumination
Quick Detail
1. 1-channel BNC HD AHD high definition video output
2. Wide Angle of view
3. Automatic White Balance
4. Working Environment -10°C~+60°C, Less than 90% RH
Application
Family,The school,Bank,The factory,The parking lot,Square,Shopping center,The airport,The bus station,The supermarket,Prison,Office Building,The meeting,Park,Chemical.
Features:
1. 15M wired IR IP camera,
2. Power Supply DC12V±10%
3. Transmission Distance Over 500m via 75-3 coaxial cable
4. Support IE,mobilephone and CMS view
5. Support DVR
|
SPECIFICATIONS |
||
|
Product Type |
AHD Camera |
|
|
Image Sensor |
1/4'' 1.0Megapixel CMOS(OV9712) |
1/3" 1.3MegapixelCMOS(IMX238) |
|
Effective Pixels |
1280(H)×720(V) |
1280(H)×960(V) |
|
Horizontal Resolution |
1280H(100W) |
1280H(130W) |
|
Video Frame Rate |
PAL: 25fps/720P NTSC: 30fps/720P |
PAL: 25fps/960P NTSC: 30fps/960P |
|
Electronic Shutter |
1/50(1/60)-1/100,000sec |
|
|
Minimum Illumination |
0.01Lux (0Lux IR on) |
|
|
Synchronization |
Internal |
|
|
TV System |
PAL/NTSC |
|
|
S/N Ratio |
≥69dB (AGC Off) |
|
|
Video Output |
1-channel BNC HDAHD high definition video output |
|
|
AWB |
AUTO |
|
|
BLC |
AUTO |
|
|
Day/Night |
Auto(ICR) / Color / B/W |
|
|
Noise Reduction |
2D/3D |
|
|
IR Length |
15m |
|
|
Lens |
3.6mm |
|
|
Power Supply |
DC12V±10% |
|
|
Working Environment |
-10°C~+60°C, Less than 90% RH |
|
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
|
CAUTION FOR SAFE OPERATION
1. Be sure of power supply at DC12V±1V.
2. Connect cables according to instruction,wrong con nection may
Cause malfunction and/or damage tothe cam era.
3.do not allow the camera to be subjected tostrong impacts or
shocks the camera could be damaged by improper handing or storage
4. Do not install at extreme warm or cold place.
(Recommended operation:-10℃-50℃)
5. Never attempt to disassemble or modify the camera
6. if an abnormality should happen to occur,immediately
Product Detail:
