Salt fog proof black backlit stand alone ruggedized keyboar

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen,China

Product Description

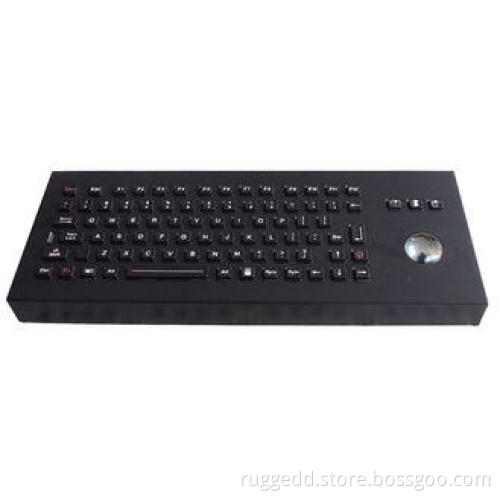

Salt fog proof black stand alone ruggedized keyboard with mechnical optical laser trackball

Special Features:

1. 85 keys IP65 industrial & military keyboard with adjustable industrial backlight
2. FN (F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12) on the top line
3. Industrial PCB with carbon-on-gold key switch technology
4. USB interface, RS232 port, rear panel mounted.
5. Red clean key lock/disable the keyboard for easy cleaning and washing without needing to take out the keyboard from PC
6. Strong polymer keys ensure the keyboard’s resistance to willful destruction, vandal-proof, against corrosion, weather-proof under hostile environments.
7. Black titanium is better for salt fog proof and scrachproof.

pls. see below table.

Product Classifications and Descriptions			IP Rated TB
K-TEK-M380-MTB-FN-BT	Keyboard; Function Keys; 400 DPI mechanical trackball module (3-in-1)	PS2/USB	IP65 Static
K-TEK-M380-OTB-FN-BT	Keyboard; Function Keys; 800 DPI optical trackball module; Adjustable Backlight is optional (3-in-1)	PS2/USB	IP68 Dynamic
K-TEK-M380-LTB-FN-BT	Keyboard; Function Keys; 1200 DPI Laser Trackball module; Adjustable Backlight is optional (3-in-1)	PS2/USB	IP68 Dynamic
Other Language versions/interfaces/configuration available on request

Applications:

1. This keyboards is constructed to survive in exposed, unsupervised, public environments, and military as Army, Navy, Air force.
2. Their responsive key action ensures rapid, reliable and responsive data entry in tough, wet or hostile conditions.
3. A hardened stainless steel front plate and polymer keys ensure the keyboard’s resistance to hard use, abuse and vandalism.
4. A water and impact resistant trackball makes this keyboard the complete and ideal solution for PC data entry in menu based ‘point & click’ application.

ELECTRICAL DATA
Supply Voltage	+5V DC +/-5%
Current Rating	40mA for keyboard and trackball without backlight. 240mA for keyboard and trackball with backlight on.
EMC Standard:	It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004
EMI:	EN 55022: 2010
EMS:	EN 55024:2010
Lifespan	> 5 years
Switch Contact Material:	Carbon-on-Gold key switch technology PCB.
Interface:	PS2, USB available.
OS:	All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY
Operating temperature	-20oC to +60oC
Storage temperature	-30oC to +70oC
Operating RH	100%
Atmospheric pressure	60-106Kpa
Saline mist	96 hours, IEC 60512-6
Damp heat test at + 40oC	21 days, IEC 60512-6
Dry heat test at + 85oC	10 days, IEC 60512-6

RELIABILITY
Certification	RoHS Compliant, CE and FCC,IP65,ESD
Protection Level	IP65(front panel)
Vandal resistant	IK10
Key Lifespan	>10 million actuations
MTBF	>50000H
MTTR	<30min
