Custom layout rugged keyboard with touchpad vandal - resist

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen,China

Product Description

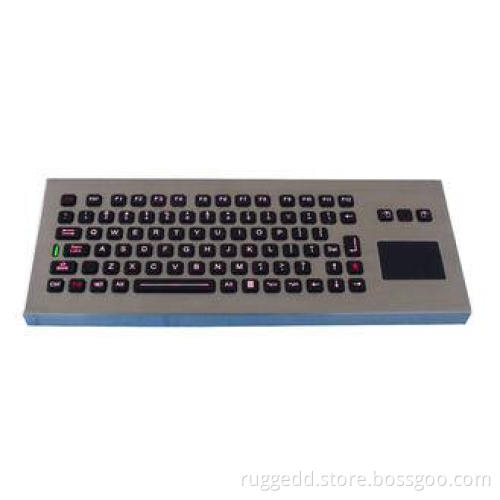

High quality custom layout ruggedized keyboard with sealed tough touchpad

Special Features:

1. The IP65 dynamic keyboards can be with industrial and military level.
2. Unique functions with red clean key to lock/disable the keyboards for easy cleaning at any tiime.

3. FN (F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12) and rugged touchpad for easy operation
4. Waterproof,vandal proof of IK10, and dustproof.
5. Excellent tactile feel with full travel switches for achieving accurate data input without any noise.
7. laser-etched or high quality ink print in legends and characters for preventing lettering rub-off.

Specifications:

MECHANICAL DATA
Key	85 keys
Key top style	Protuberant rectangular keys.
Actuator/keys materials	polymer
Top SS plate	1.5mm stainless steel plate with super quality durable Black Titanium Electroplated
Back SS plate	1.5mm stainless steel plate
Robust polycarbonate frame	Between top SS plate and back SS plate for fixing and mounting keys & gold PCB electronics controller, with mounting holes along the keyboard mounting edge for fixing keyboard with rear panel mounting.
Key Size	11.4mm x 11.4mm for normal keys, 11.4mm x 24.3mm for enter key, 11.4mm x 71.8mm for space bar.
Key travel	1.50mm
Switch life	more than 10 million of operations.
Lettering	laser-etched or high quality ink print.
G.W.	1.80KGs
Dimensions	380.0mm x 108.0mm ( L x W )
Touchpad cover	Composite
Lifetime	More than 10 million strokes Mutual Capacitance sensing
X/Y position sensing resolution	40 counts/mm
X/Y position reporting	Relative
Output(self-detectable depending on cable)	PS2 or USB
Tracking speed	Maximum 1,016 m/sec
Power supply voltage	5 VDC ±0.25V
Current rating (active mode)	17 mA
Switch life	more than 10 million of operations

ELECTRICAL DATA
Supply Voltage	+5V DC +/-5%
Current Rating	30mA for keyboard and touchpad without backlight. 130mA for keyboard with backlight on.
EMC Standard:	It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
EMI:	EN 55022: 2010
EMS:	EN 55024:2010
Lifespan	> 5 years
Switch Contact Material:	Carbon-on-Gold key switch technology PCB.
Interface:	PS2, USB available.
OS:	All windows, Linux, Unix, Mac OSX

Applications:

This keyboards is constructed to survive in exposed, unsupervised, public environments, and military as Army, Navy, Air force.
