Waterproof Rear panel mounting IP65 Industrial rugged touch

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

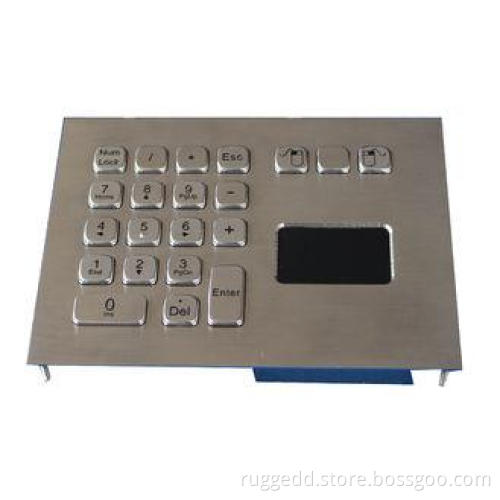

IP65 dynamic sealed tough industrial metal touchpad with numeric keypad

Main Features:

1. IP65 dynamic sealed and ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position

2. industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm)

3. with extremely good tactile feeling for fast and accurate data input without any noise

4. with numeric keypad integrated

5. stainless steel top plate with threaded bolts for top panel mounting solution. .

Application:

A: INDUSTRIAL: Industrial automation, Banks/Kiosks, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses.
B: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc.

C: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc.
D: MILITARY: Army, Navy, Air force, Marine and Boating etc

ITEM		SPECIFICATION
Mechanical	Front Plate	Quality brushed stainless steel
	Touchpad thickness	1.3 mm PCB thickness inclusive of mylar layer
	Validated touch width	46.50mm (max)
	Validated touch length	62.50mm (max)
	Mounting Rack	Aluminum alloy
	Back Metal Cover	Rear side integrated electronics protected by a metal cover
	Touchpad lifespan	> 10 Mio times
	Dimensions	Touchpad: 65.0mm x 49.0mm; Front Mounting Panel: 160.0mm x 125.0mm (front panel),
Interface	PS2 and USB both available
Electrical	Power supply		5V DC+ 10%,
	Work current		4.0 mA (normal)
	X/Y position sensing resolution:		1000 points/inch (40 points/mm)
	X/Y position reporting:		Relative
	Tracking speed:		Maximum 1,016 m/sec
	Protection level:		IP65 (front panel)
	Static Release:		15 KV (front panel)
	EMC Standard:		EN55022(B)
Environmental	Operating temperature:		-20°C to +60°C
	Storage temperature:		- 40°C to + 70°C
	Operating RH:		10%-95%
	Atmospheric pressure:		60-106Kpa
Reliability	MTBF		>50000H
	MTTR		< 30min
	Touchpad Lifespan		>10 million actuations
OS	OS is under All windows Linux, Unix, Mac OS9 / OSX
Packing Details	Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.

Mechnical drawing
