MINI Industrial Metal Keyboard with Trackball / kiosk metal

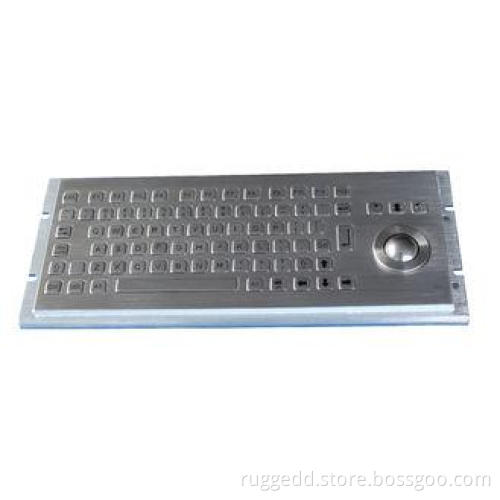

MINI 68 Keys IP65 static Compact Format Vandal Proof Stainless Steel Industrial keyboard

DESCRIPTION:

MINI 68 Keys IP65 static rated Compact Format Vandal Proof Stainless Steel Industrial keyboard with IP65 static rated 25mm stainless steel mechanical trackball module with +400 DPI resolutions for accurate cursor position,industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input.3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, high quality durable black titanium electroplated on the top stainless steel plate optional, with rear panel mounting solution .

MECHANICAL DATA:

Actuator/keys: 68 keys, 2.0mm thickness super quality SUS304 brushed stainless steel flat key.

Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille

on keys are available

Key Size: 10.0mm x 10.0mm for normal keys, 10.0mm x 20.0mm for enter key, 10.0mm x 75.0mm

for space bar.

Key travel: 0.45mm

Actuation Force: 1.50N+/-0.1N for key 10.0mm x 10.0mm (pressure point), 3.0N+/-0.1N for key

10.0mm x 20.0mm (pressure point)

Switch life: more than 5 million of operations.

Front Plate: 1.5mm thickness super quality brushed stainless steel

Back Plate:3.0mm thickness brushed & oxidized aluminium

Tracker ball: 25.1mm (1.0’) diameter, IP65 static Trackball module with 400 DPI.

G.W. 1.00KGs

Dimensions: 255.0mm x 90.0mm (front panel), 275.0mm x 102.80m (back panel)
