Motor Power 1.8kw 630kg Suspended Work Platforms Aluminum With 8.3 mm Steel Wire

Descriptions:

Shandong Haoke Building Machinery Equipment Co., Ltd. is founded in 2005.

It is a leading high-tech enterprise specialized in research, development and manufacturer of Electrical

Suspended Platform, Construction Material Hoist, Construction Elevator, Tower Crane, Self-propelled Jack

Gantry Lift, as well as other various kinds of construction equipment. We are located in Shandong Gaotang

county of China that is a famous hometown of painting and calligraphy.

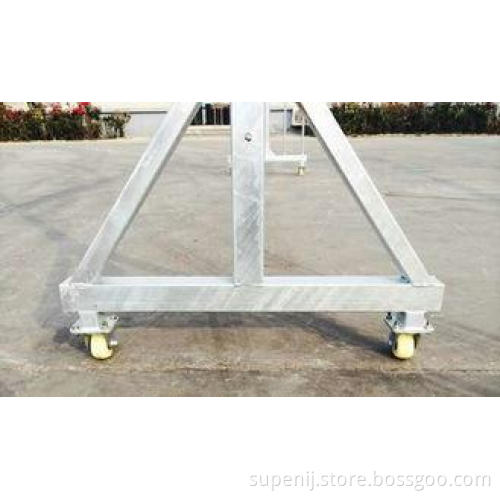

Structure of suspended platform:

Technical Parameters:

Model No.		ZLP630
Rated load(kg)		630
Lifting speed(m/min)		9~11
Motor power(kw)		2×1.5, 50HZ/60HZ
Brake torque(Km)		16
Steel rope angle adjusting range(°)		3°- 8°
Distance between two steel rope(mm)		≤100
Rated stretch of front beam(mm)		1500
Suspending Platform	Locking	Aluminum alloy
	Nr.Of platform rack	Single rack
	Nr.Of platform	3
	L×W×H(mm)	(2000×3)×690×1180
	Weight(kg)	375 Kg
Suspending mechanism(kg)		2×175 Kg
Counterweight(kg) optional		25×36pcs
Diameter of steel rope(mm)		8.3
Max Lifting height(m)		300
Motor rotation speed(r/min)		1420
Voltage(v) 3PHASES		220V/380V/415V (customized)
