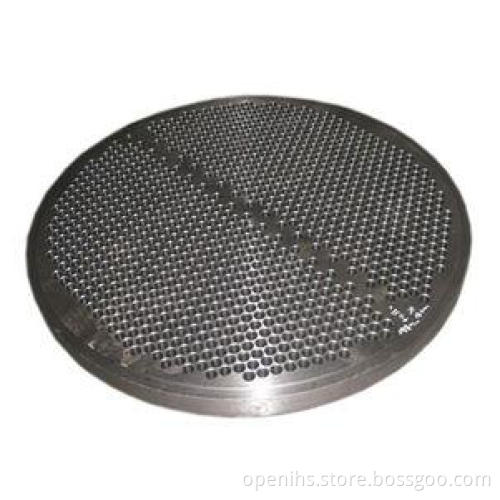

SS 304L / 316L / Q345D / 16Mn Gear Forging Tube Sheet For Column Tube Heat Exchangers
Technical Parameter
|
Description |
Tube sheet is widely used in the column tube heat exchangers , boilers, pressure vessels, steam turbines, large central air-conditioning and other industries. Mainly used for chemical containers, such as tube type heat exchangers, pressure vessels, boilers, condensers , central air conditioning , evaporators, desalination The main material SS stainless steel, material Q345R, 16Mn, titanium , etc. |
|
Material |
SS 304L |
|
Material standard |
ASTM or GB/T3077-1999 |
|
Dimension |
O.D :2000mm THK:300mm |
|
Weight |
7.5 T |
|
Smelting Process: |
EF+LF + VD |
|
Process |
Ingot→heat → forging → Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection |
|
UT standard |
ASTM A388 or EN10228 |
