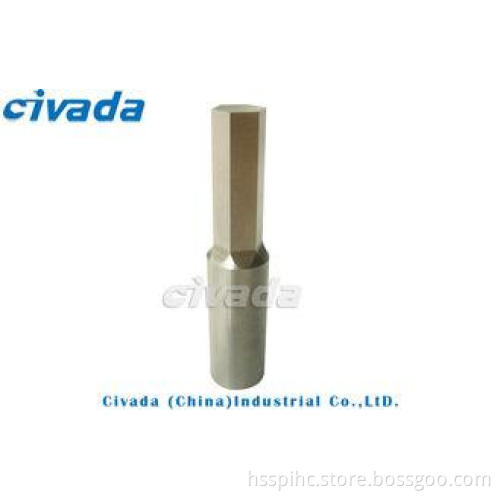

Tip Hexagon Shape HSS Punches Pin Tapped Punches With Steps

Tip Hexagon Shape HSS Punches Pin Tapped Punches With Steps

1. Material

Carbide / ASP23 / Vanadis4 / SKD11 / HSS / A2 / M2 / D2 / SKD51 / SKH61

2. Hardness

58 ~ 62 HRC or depends on processing materials

3. Specification

• Standards: Dayton/Lane/DIN/ISO/Fibro/Moeller/HASCO
• Tolarance :0.002’’
• Further dimensions, lengths and materials available on request
• Customized sizes are accepted
• Shapes: oblong, square and hexagon
• Coating service TiN, TiCN and TiAIN
• Service: made-to-order and standard with stock
• Closest tolerance: ±0.002mm
• Polishing: can make close to Ra0.4 standard is R0.8
• Good-quality and precision
• The punch & die can be replace when it is worn
• Working speed: 180 to 220/min

Our Punch product line includes:

Ball-lock regular and nose large styles - (light duty, heavy duty, extra heavy duty) for quick change applications.

Shoulder (Headed) Style - include are our commercial standard and precision tolerances.

Dura Punch - Designed with thicker, larger, and 10 degree angled diameter heads significantly reducing failure when piercing heavy gauge and high strength materials.

Quill - punches with straight and bevel style heads.

Blanks - Our inventory of ball-lock and shoulder type punches is available in numerous sizes including extra long lengths.

Custom Built - For piercing, piloting, forming or bending applications in a variety of materials with alternate heat treatments and performance enhancement coatings.

Punch Surface Coating

TiN - ( Titanium Nitride ) PVD Coating

Alteration Order Code : TIN -- Add 3 days to Delivery

TiN is the least expensive and most commonly used PVD ( Physical vapor deposition ) wear resistant coating offering :

• Excellent wear resistance on cutting edges and wear surfaces
• Excellent lubricity
• Suitable thermal stability for most cold work metalworking applications
• High microhardness of 2300 Vickers

Note : TiN works best when used with lubricants and is not recommended for uses in stainless steel,nickel ,or copper applications

TiCN - ( Titanium Carbon Nitride) PVD Coating

Alteration Order Code : TCN-- Add 4 days to Delivery

TiCN has the broadest range of application use regarding PVD coating including stainless steel ,nickel ,and copper metal working operations offering :

• Higher hardness and lower coefficient of friction and thay of TiN coating ,resulting in extremely high wear resistance on cutting edges and wear sufaces
• Improved lubricity
• Extremely high micro hardness of 3000 Vickers

Note: Suitable for uses in stainless steel ,nickel ,or copper applications

TiAIN - ( Titanium Aluminum Nitride ) PVD Coating

Alteration Order Code : TAN-- Add 3 days to Delivery

TiAN is idea for application where suface heat generated ,which converts the aluminum constituent to aluminum oxide for added protection against shear stress and wear resistance on cutting edges .

• High thermal stability
• Extremely high micro hardness of 3400 Vickers

Applications:

• Punching Mold--Press die conponents
• Automobile Die
• Suitable for different type of plastic bag making machine--Plastic injection mold components
• Can punching for 0.01mm single-layer material of plastic bag,paper, non-woven fabrics. PE, OPP, PO, PP, PVC, PPE, PPU, OPE film ​
