Indoor / Outdoor FTTH Duplex Armored Fiber Patch Cord for N
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China Mainland |
|---|
Product Description
Product Description

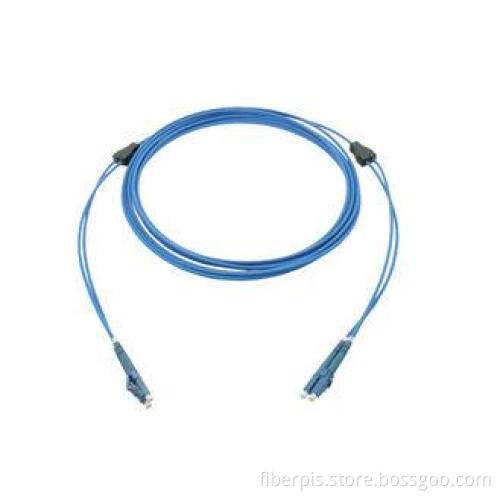

Indoor / Outdoor FTTH Duplex Armored Fiber Patch Cord for National defense
Quick Details:
- Type: Armoured patch cord
- Cable core: Simplex, Duplex
- Mode: OM3, OM4
- Ferrule End-face: PC, UPC
- Cable diameter:2.0mm, 3.0mm
- Cable length: 1m, 2m, 3m….customized
Description:
Armored patch cord can be laid in all kinds of environmental extremes. It is used without protection tube which saves space and is quite convenient for maintenance. Also it has the construction including stainless steel tube which protects optical fiber and provide better security for the whole system.
Features:
- High tensile coefficient and stress coefficient
- Convenient for application, highly security
- Application without damage to cable
- Manufacture without damage to cable
- Cost cutting for maintenance
Applications:
- FTTH
- Area network
- Test equipment
- National defense
- Common antenna TV system
Specification:
| Item | Single mode | ||
| Ferrule End-face | PC | UPC | APC |
| Insert attenuation | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return loss | ≥45dB | ≥50dB | ≥55dB |
| repeatability | ≤0.1dB | ≤0.1dB | ≤0.1dB |
| Operation temperature | -20°C~+70°C(PVC)/-40°C~+90°C(LSZH/PU) | ||
| Outer diameter | 1.6mm | ||
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
