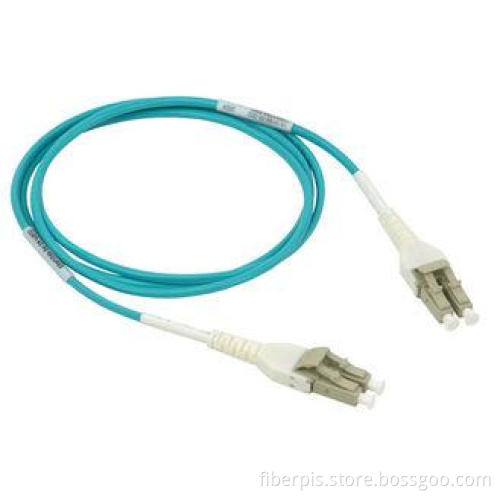

OM3 , OM4 Uniboot LC Fiber Optic Patch Cord with OM4 LSZH Cable
Quick Details:
- Name: LC Uniboot patch cord
- Boot color: Beige
- Mode: OM3, OM4, OS1, OS2, OM1, OM2
- Cable core: Duplex
- Ferrule End-face: PC, UPC
- Cable diameter: 0.9mm, 2.0mm, 3.0mm
Features:
- Guaranteed Zero Defects
- Meets Telcordia Endface GeometryRequirements
- Custom Configurations Available at No Extra Charge
- Insertion & Return Loss Tested
- Serialized & Individual Test Records
Applications:
- Optical access network
- Fiber optic communication networks
- CATV, LAN, MAN, WAN, Test &Measurement
- Telecommunication networks
Specification:
| Item | Single Mode | Multi Mode |
| Insertion Loss | <= 0.2dB | <= 0.3bB |
| Return Loss | PC≥50dB, UPC≥55dB, APC≥60dB | |
| Insert-pull Test | 1000 times | |
| Repeatability | <=0.1 | |
| Tensile strength | ≥10KG | |
| Operating Temperature | -40°C ~ +85°C | |
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um |
| Suitable Fiber | 9/125um | 50/125um,62.5/125um |
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
