Product Description
Product Description

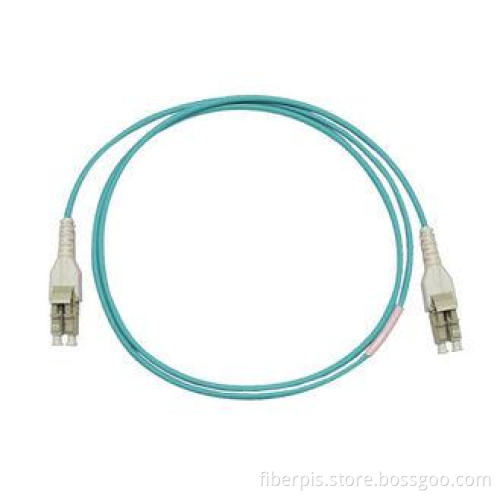

High return loss 10G OM3 Fiber Optic Patch Cord for FTTH application
Quick Details:
- Name: Uniboot LC patch cord
- Boot color: Beige
- Cable length: 1m, 2m, 3m….customized
- Mode: OM3, OM4, OS1, OS2, OM1, OM2
- Ferrule End-face: PC, UPC, APC
- Cable core: Duplex
Features:
- Low insertion loss, high return loss
- Clean and Scratch-Free End Face
- Good interchange
- Good repeatability
- High Quality 100% Factory Tested
- 3D fiber interferometer is available
Applications:
- FTTH application
- Premise installations
- Data processing networks
- Wide Area Networks (WANs)
- Industrial ,mechanical and military
Specification:
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | |||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Durability | dB | >1000 | >1000 | >1000 | |||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | |||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | |||||||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | |||||||
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
