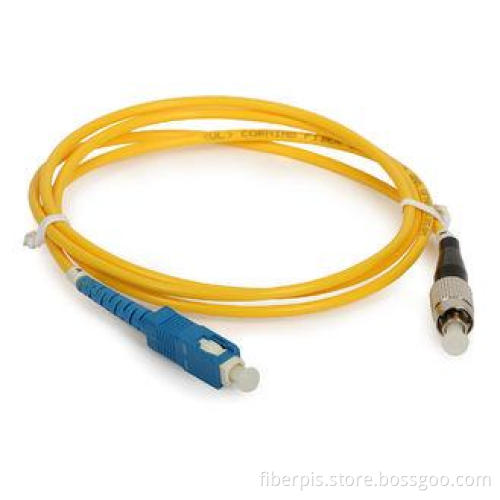

Data processing networks Optic Patch Cord with Low Insertion loss , Single Mode

Quick Details:

  1. Connector: SC, FC, LC
  2. Ferrule End-face: PC, UPC, APC
  3. Mode: Singlemode
  4. Cable core: Simplex, Duplex
  5. Cable diameter: 0.9mm, 2.0mm, 3.0mm
  6. Cable color: Yellow, Orange, Aqua, Blue, Grey, Green, Red....

Features:

  1. Low insertion loss and high return loss
  2. Serialized & Individual Test Records
  3. Guaranteed Zero Defects
  4. Meets RoHS and Bell core GR 326-core standards
  5. Custom Configurations Available at No Extra Charge
  6. 3D fiber interferometer is available
  7. FC, LC, SC, ST, MU, MTRJ, MPO optional

Applications:

  1. Telecommunication networks
  2. Fiber optic communication networks
  3. CATV, LAN, WAN, Test &Measurement
  4. Optical access network
  5. Data processing networks

Specification:

Parameter Single Mode Multi Mode
Basic Fiber connector FC, SC, LC, ST, MU, MTRJ, MPO, E2000
Ferrule End-face PC UPC APC UPC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.3dB ≤0.3bB
Return Loss ≥50dB ≥55dB ≥60dB ≥35dB
Ceramic Ferrule Specification 125.5um concentricity deviations:<=1um 127um concentricity deviations:<=3um
Suitable Fiber 9/125um 50/125um,62.5/125um
End-face Geometry Radius of Curvature 7~25mm 5~12mm N/A
Fiber Protrusion ≤50nm ≤100nm N/A
Fiber Under Cut ≤100nm ≤100nm N/A
Apex offset ≤50um
Mechanical Exchangeability ≤0.2dB
Salt Spray ≤0.1dB
Drop ≤0.2dB(1.5M, 5 drops)
Vibration IL ≤0.2dB(550Hz, 1.5mm)
Repeatability ≤ 0.1dB(1000 times)
Durability > 1000 times
Operating Temperature -40°C ~ +85°C

Packing:

One piece per PE bag with stick label (we could add customer's logo in the label.)

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
