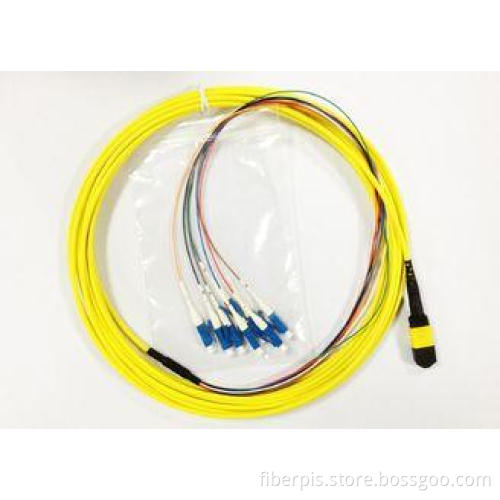

MPO - LC Fiber Optical Patch Cord with 12core Ribbon Cable
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China Mainland |
|---|
Product Description
Product Description
MPO - LC Fiber Optical Patch Cord with 12core Ribbon Cable
Quick Details:
- Name: MPO - LC fiber optic cable lead
- Ferrule End-face: UPC, APC
- Mode: OS1, OS2, OM1, OM2, OM3, OM4
- Cable Jacket: PVC LSZH, OFNR, OFNP
- Cable Type: Ribbon fiber optic cable, Flat and Round
- Cable core: 8core 12core, 24core optional
Desciption:
MTP/MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex. There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4 fibers, 8 fibers, 12fibers, 24 fibers.
Features:
- High reflection loss
- Fiber in single connector: 4, 8, 12, 24core
- Insert/Pull latching connector
- Comply with Telcordia GR-1435-CORE specification and Rosh standard
- High fiber density (maximum 24 fibers for Multimode)
- Single mode and Multimode (Flat/Round) available
Applications:
- Premise Installations
- FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
- Telecommunication and Data processing Networks
- Video transmission , Data transmission
- Active Device Termination
Specification:
Fiber Connector
| Connector A | |
| Connector Type | 12 or 24 -Fiber MPO /MTP |
| Ferrule of end-face | UPC, APC |
| Housing Color | MM (Beige/Aqua), SM (Yellow/Green) |
| Insertion Loss, Typical | ≤ 0.10 dB |
| Insertion loss, max. | ≤ 0.35 dB |
| Durability(500 Matings) | < 0.2dB |
| Connector B | |
| Connector Type | LC/SC |
| Ferrule of end-face | UPC, APC |
| Housing Color | Blue, Beige, Aqua |
| Insertion Loss, Typical | ≤ 0.10 dB |
| Insertion loss, max. | ≤ 0.35 dB |
| Durability(1000 Matings) | < 0.2dB |
Fiber Cable
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 12, 24 cores |
| Outer diameter | 12cores: 4.5±0.2mm ; 24cores:5.4±0.2mm |
| Outer jacket Colour | OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet) |
| Outer jacket material | LSZH,OFNP,OFNR |
| Tensile strength | 500N |
| Operating Temperature | -20 ~ +60°C |
| Storage Temperature | -40 ~ +70°C |
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
