Product Description
Product Description

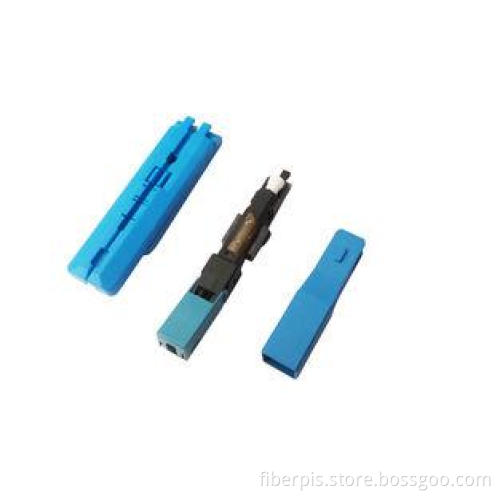

Multimode SC fiber optic cable connectors with Polished Fiber Ferrule
Description:
SC quick assembly connector has easy assembly and excellent stability.
Quick Detail:
- Name: Fiber Optic Connector
- Connector: FC, LC, SC
- Ferrule end-face: UPC, APC
- Ferrule size: 2.5mm
- Mode: Singlemode and Multimode
- Structure: Pre-polished, Un-polished
Feature:
- No special assembling tool
- Easy for assembling with mechanical splice and no polishing
- Minimize the defect rate by features of removal and reusable.
- Easy for learning technology by a simple assembling method (within 1 and half minutes)
Application:
- Optical network maintaining and repair
- Terminal connection-leg of FTTH optic network
- Optical fiber plug-and socket panel
- Local area network environment of connection
- Fiber optic distribution frame
Specification:
| Article | value |
| Insertion loss | ≤0.3 (max 0.4) |
| Return loss | ≥60dB |
| Connector type | SC/APC |
| Cable | drop 3.0mm / flat 2x3mm cable |
| Fiber clamping force | ≥3N |
| Tensile Strength | Typical ≥40N (Max 50N) |
| Online tensile strength 20N | IL variation (≤0.2dB) RL variation (≤5dB) |
| Working Temperature | -40℃ ~ +75℃ |
| Can be repeatedly used | Possible |
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
