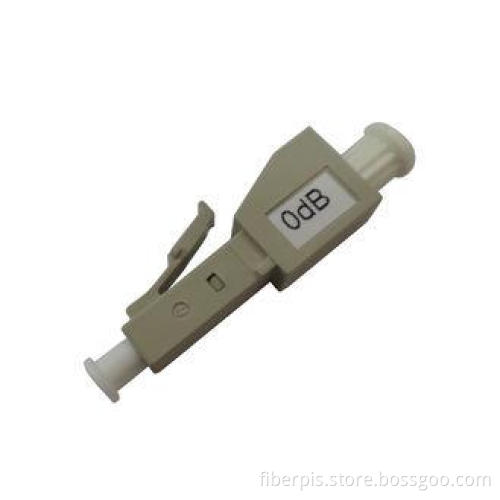

0dB LC Multimode Fiber Optic Attenuator with High Return Lo

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China

Product Description

0dB LC Multimode Fiber Optic Attenuator with High Return Loss , 850nm wavelength

Quick Detail:

Name: 0dB Fiber attenuator
Mode: Multimode
Fixed Attenuation1,2,3,5,10,15,20 dB or Optional
Compliance with TIA/IEA, IEC, RoHS
Wavelength 850nm
Attenuation Range 0 - 30 dB

Description:
Fiber Optic Attenuator is used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed.

Features:

Various Modes of Attenuation and Interface
High Return Loss and Stable Attenuation Loss
Good Repeatability and Interchangeability
High RL Attenuator(Female & Male Type FC, SC, LC)
Variable Attenuator

Application:

Telecommunication Network
Wide-Area networks
Testing Equipment
Local Area Network(LAN)
CATV
FTTH

Specification:

Item	Parameter
Model	Fixed, Female&Male, In-line, Variable
Operating Wavelength	SM:1310/1550nm MM: 850/1300nm
Attenuation Range	1~30dB
Return Loss	PC:≥50dB UPC: ≥55dB APC: ≥60db
Attenuation Tolerance	≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Maximum Optical Input Power	1000mW
Polarization Dependent Loss	≤0.1dB
Working Temperature	-40°C~+75°C
Storage Temperature	-40°C~+ 85°C
Humidity	95%RH

Ordering Information:

SC/UPC-SM-3dB-Female&Male

Step 1: Connector type: FC, SC, LC, ST, MU
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm

Shipping:

Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
Airport to Airport: by air
Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
