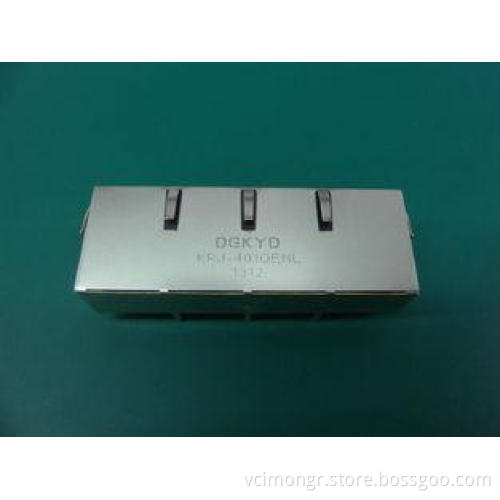

1000Base 1 x 4 Port IEEE Shielded RJ45 Connector Module for

1000Base 1 x 4 Port IEEE Shielded RJ45 Connector Module for DSL ADSL Tab-Down

Quick Details:

10/100/1000base,Tab-down,4port(1X4),w/led and EMI fingers

1.Type: Shielded rj45 jack
2.TAB direction: Down
3.Port: 4 port 1X4
4.LEDS:YES
5.EMI fingers:YES
6.Length: 21.3mm

Applications:

10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, PC Board, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL/ADSL and so on.


Descriptions:

* 10/100/1000Base-Tx RJ45 4 port 1X4 Right Angle with LEDS with female
* Number of positions:10
* Number of contacts loaded:8
* Shield:YES
* Rohs compliant
* Length:21.3mm
* LEDS:YES
* EMI fingers:YES
* LEFT LED:Green,RIGHT LED:Yellow
* Usage:KRJ-401QENL

* 4 port 1X4 Tab-Down RJ45 with internal magnetics
* Internal magnetics are 100% electrically tested for HI-POT and functionality
* Suitable for CAT5&6 fast Ethernet Cable or better UTP
* 350uHminimum OCL with 8mA bias current
* High performance for maximum EMI suppression
* Minimum 1500Vrms isolation per IEEE 802.3 requirement
* ROHS-6 peak wave solder temperature rating 260℃
* Operating temperarure range :0℃ to +70℃
* Storage temperature range :-40℃ to +85℃
