Product Description

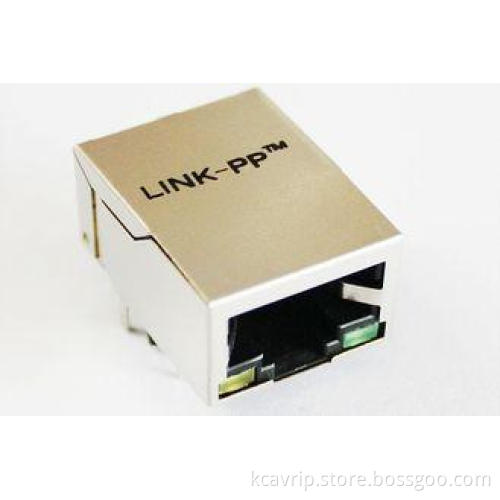

Communication Hub SMT RJ45 Connector / Modular Jacks RJ45 with LED , Emi Finger

1. P C Mainboard, SDH, PDH, IP Phone, xDSL modem

2. W/LED'S SHIELDED RJ45

3.Printed Circuit Board networking and communication equipments

4.Minimum 1500Vrms

5.6605473-8

Description:

6605473-8 RJ45 MODULAR JACK, W/LED'S SHIELDED RJ45

1. Product Type Features:
1) Product Type	Connector
2) Jack Type	RJ45
3) Profile	Standard
4) PCB Mounting Orientation	Through Hole
2. Mechanical Attachment:
1) Jack Configuration	1X1
3. Electrical Characteristics:
1) Shielded	Yes
4. Termination Related Features:
1) EMI Finger	Yes
2) Termination Method	Solder
5. Body Related Features:
1) Port Configuration	Stecked
2) EMI Fingers -Top and Sides	With/Without
3) Latch Orientation	Standard - Latch Down
4) PCB Tail Length	3.50±0.50mm
6. Contact Related Features:
1) Preloaded	Yes
2) Contact Termination Type	Through Hole
7. Housing Related Features:
1) Connector Style	Jack
8. Industry Standards:
1) RoHS/ELV Compliance	RoHS compliant, ELV compliant
2) Lead Free Solder Processes	Wave solder capable to 265°C
3) RoHS/ELV Compliance History	Always was RoHS compliant
9. Identification Marking:
1) Left LED Color	Green or Yellow
2) Right LED Color	Green or Yellow
10. Conditions for Usage:
1) Applies To	Printed Circuit Board
2) Environmental Conditions	Office / Premises
3) Operating Temperature (°C )	0 - 70/-40 - +85
11. Configuration Related Features
1) Magnetic Circuit	3D15
2) Status Indicator	Led
3) Decoupling Capacitor	With/Without
4) Rear PCB Ground Tab	With/Without
5) Signal Lead Quantity	8
12. Operation/Application:
1) Application	10/100 Base-T
