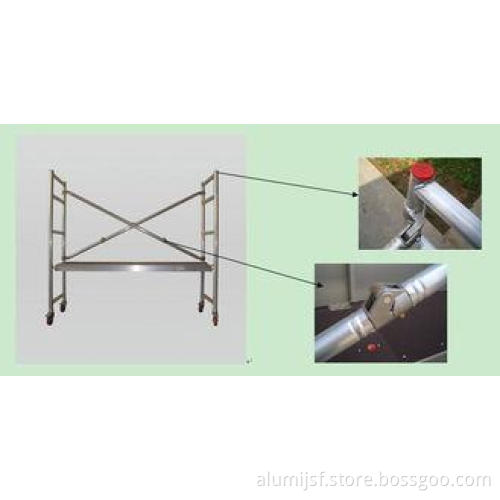

OEM Light Weight Foldable Aluminum Scaffolding Professional for indoor / home
Quick Detail:
Aluminum alloy Foldable scaffolding for maintenance;. Cold-formed jointing system, cold-pressed and tig-welded joints with casting system and tig-welded system are adopted.
Description:
Size: L* W*PH= 2m*0.678m*1.2m
The cold-formed jointing system is a key feature of the Kangde Aluminum alloy tower system, we adopts this method to produce the aluminum frames and components in our Heavy-duty products, which offer tensile joint strengths up to three times greater, and durability (resistance to cracking) many times higher, than that of traditional welded types. Frames are manufactured by using computer-controlled assembly rigs to ensure consistent specifications.
Features:
1. Loading Class 3 of 2kn/m2, European Standard EN1004: 2004
2. Unique Cold-formed and TIG-welded joints; Trapdoor platform
3. Fast and convenient hinge jointing system ensuring the easy, quick snap-out and folding of the tower in seconds
4. Compact Foldable structure can be used as a working bench or work cart with easy transportation and storage, ideal for all DIY jobs around the work site and home
5. Light-weight, safe, high tensile, trouble-free erect and dismantle, durable and cost effective
Applications:
For maintenance.
To help you work easily and safety at height
Specifications:
L* W*PH=2m*0.678m*1.2m
Platform height : 1.2m
Tower height: 2.2m
Working height: 3.2m
| Part No. |
N.W (kgs) |
Size(L.W.PH) (mm) |
Packing Size (mm) |
20’ GP (sets) |
40’ GP (sets) |
Loading capacity |
| JS-SL300-2SL1 | 38.4 | 2000*678*1200 | 2100*760*280 | 80 | 160 | 270 |
| JS-SL300-2SL2 | 54.7 | 200*678*2000 | 2100*800*300 | 80 | 160 | 270 |
Material: AL6082-T6 for tube with wall thickness of 50.8mm*1.475mm
|
Loading Capacity
|
For platform | For the whole tower (self-weight and ballast not included) |
| Cold-formed system | 360 kgs | 700 lbs |
| cold-pressed and tig-welded system | 270 kgs | 540 lbs |
| tig-welded system | 200 kgs | 400 lbs |
Competitive Advantage:
1. Professional management with ISO9001& 14001 as well as TUV GS certificate compliant with European Safety Standard EN1001:20042. Technical and service strength offering you professional support from design to after-sale service
3. Unique Cold-formed, tig-welded and Ring-lock joints
4. Volume production line with OEM and ODM capability
5. Rich and cost-effective product range in aluminum and steel scaffolds, ladders and castings
6. 16-year experience in design, manufacturing, marketing as well as after-sale service
7. 9-year experience in the international markets, exporting to European countries, Asia, North America, south America and Australia.
