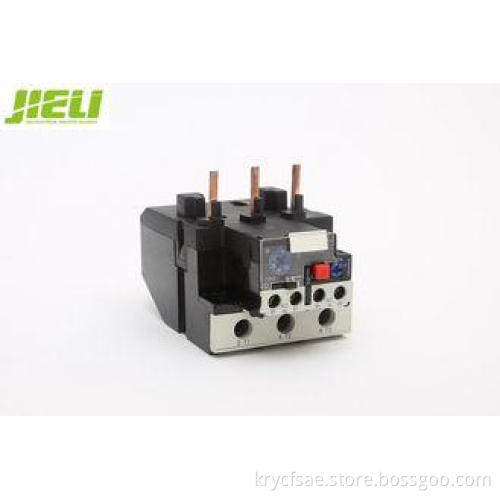

Thermal Electronic Overload Relay Reliable , Motor Thermal Protection
Quick Detail:
|
Place of Origin: |
Zhejiang China (Mainland) |
Brand Name: |
JIELI |
Model Number: |
JL-LR28 |
|
Theory: |
Thermal Overload Relay |
Usage: |
Protective |
Type: |
Thermal Overload Relay |
|
Protect Feature: |
Sealed |
Contact Load: |
Low Power |
|
|
Description:
The JL-LR28 thermal overload relay is an economic electromechanical protection device for the main circuit.
The thermal overload relay offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10A. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication.
The thermal overload relay is connected directly to the block contactors. Single mounting kits are available as accessory.
Applications:
JL-LR28 Thermal Overload Relay electrical application, telecommunication, automatic control, wireless radio remote control and sound control toy application.
Specification:
|
Setting Range |
80.0 ... 110.0 A |
|
Rated Operational Voltage (Ue) |
Main Circuit 690 V AC,Auxiliary Circuit 500 V AC |
|
Rated Operational Current (Ie) |
110 A |
|
Rated Operational Current AC-3 (Ie) |
110 A |
|
Rated Frequency (fr) |
Main Circuit 50 Hz |
|
Main Circuit 60 Hz |
|
|
Auxiliary Circuit 50 Hz |
|
|
Auxiliary Circuit 60 Hz |
|
|
Rated Impulse Withstand Voltage (Uimp) |
Main Circuit 6 kV |
|
Auxiliary Circuit 6 kV |
|
|
Rated Insulation Voltage (Ui) |
690 V |
|
Number of Poles |
3 |
|
Number of Auxiliary Contacts NC |
1 |
|
Number of Auxiliary Contacts NO |
1 |
|
Conventional Free-air Thermal Current (Ith) |
Auxiliary Circuit NC 10 A |
|
Auxiliary Circuit NO 6 A |
|
|
Rated Operational Current AC-15 (Ie) |
(240V) NC 3 A |
|
(400V) NC 1.9 A |
|
|
(500V) NC 1 A |
|
|
(240V) NO 3 A |
|
|
(400V) NO 1.0 A |
|
|
(500V) NO 1.0 A |
|
|
Pollution Degree |
3 |
|
Connecting Capacity-Auxiliary Circuit |
Rigid 1/2x 0.75 ... 4 mm² |
|
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
|
|
Flexible 1/2x 0.75 ... 2.5 mm² |
|
|
Connecting Capacity-Main Circuit |
Rigid 1x 16 ... 35 mm² |
|
Flexible 1x 16 ... 35 mm² |
|
|
Tightening Torques |
Main Circuit 7.2 ... 9.6 N·m |
|
Auxiliary Circuit 1 ... 1.3 N·m |
|
|
Recommended Screw Driver |
Hexagon |
|
Mounting Position |
Position 1 to 4 |
|
Power Loss |
Per Pole 2.5 ... 4.7 W |
|
Suitable For |
A95 |
|
A110 |
|
|
Standards |
IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1 |
|
Ambient Air Temperature |
Operation -25 …. +55 °C |
|
Operation Compensated -25 ... +55 °C |
|
|
Storage -40 …+70 °C |
|
|
Ambient Air Temperature Compensation |
Yes |
|
Maximum Operating Altitude Permissible |
2000 m |
|
Resistance to Shock acc. to IEC 60068-2-27 |
11 ms Pulse 12g |
