Electronic / Magnetic Copper Residual Current Circuit Break
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Zhejiang,China(Mainland) |
|---|

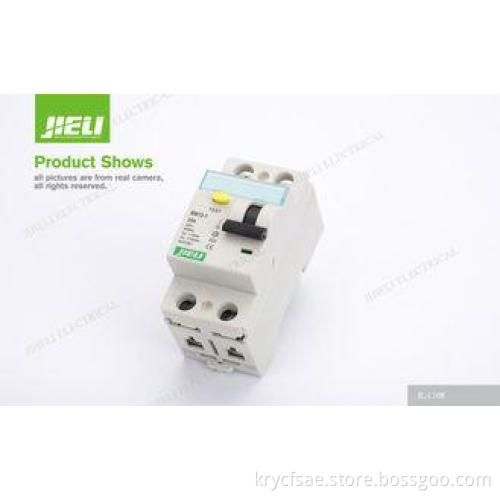

Electronic / Magnetic Copper Residual Current Circuit Breaker 220V 30mA 300Ma
Quick Detail:
Place of Origin: Zhejiang China (Mainland)
Brand Name: JIELI OEM/ODM
Model Number: JL-L10R
Type: Residual current
Poles Number: 2P/4P
Rated current(A): 16-100
Rated voltage(V): 230/400
Rated residual operating current(mA): 30mA,300Ma
Rated residual non-operating current(mA): 0.5 ≤I n
Color: White
Residual current off-time: ≤0.3s
Point: silver
Parts: brass/copper
Description:
JL-L10R residual current circuit breaker has two kind of types: Electronic or Magnetic
1. JL-L10R residual current circuit breaker choose the best material.
Excellent product comes from excellent material. Pure copper with excellent quality.
2. Meticulous design
Delicate design on product detail. Seven rivets make product stronger and stripes on handle
enable better hand feel.
3. Perfect quality
Never compromise on quality, make perfect product, reach real 6KA.
4. Strong packing
Dedicate packing, improve product's added-value, help you win the market.
Applications:
JL-L10R residual current circuit breaker is applying to the circuit of AC 50/60Hz, 240V single phase, 415V three-phase and below it for industrial and mining enterprise, building trade, commerce and family.
Specifications:
|
Product name |
JL-L10R |
|
Standard |
IEC61008/GB16196 |
|
Product Certifications |
CE,CB,3C |
|
Product Function |
Leakage protection, Isolation function |
|
Rated current(A) |
<25 <40 <63 |
|
Pole No |
1P+N 3P+N |
|
Rated voltage(V) |
230V/400V |
|
Rated frequency(Hz) |
50/60 |
|
Sensitivity (In) |
30mA,100mA,300mA |
|
Environment temperature |
-25°C-+60°C |
|
Connection type |
Tunnel style, Pin style, U style |
|
Biggest wiring ability |
35mm2 |
|
Action style |
AC22 |
|
Installation style |
35mm standard 35mm guide |
|
Im,Im(A) |
500 |
|
Inc,Ic(A) |
6000 |
|
Mechanical life |
10000 |
|
Protection degree |
IP20 |
|
Weight(g) |
220 |
Competitive Advantage:
1. High Quality
2. Reliable
3. Durable
4. Reasonable Price
5. Good after Service
6. 5 Year Warranty
