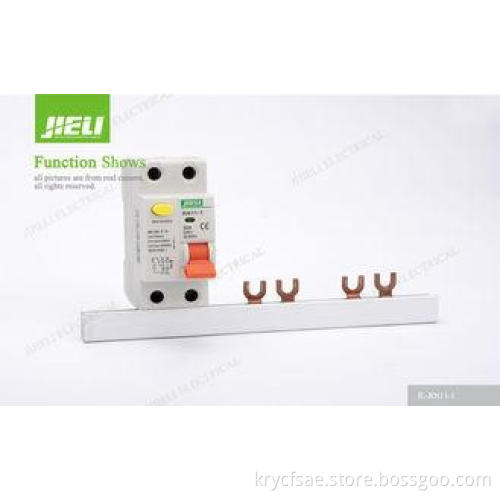

GB16196 Miniature Vacuum Residual Current Circuit Breaker Low Voltage 6A - 63A
Quick Detail:
Place of Origin: Zhejiang China (Mainland)
Brand Name: JIELI
Model Number: JL-RN11-1
Type: Residual Current
Poles Number:2
Color: White
Cover: fire proof
Certificate: CE/ISO9001/IEC60898
Current: 6A-63A
Quality level: A
Breaking capacity: 4.5KA, 6KA , 10KA
Point: Silver/cooper
Warranty: 5years
Description:
RN11-1 residual current circuit breaker 32A rccb are used for protection against indirect touching of parts under voltage, for prevention of lasting voltage on earthed parts which should appear because of a defect in the electrical installation and for protection against direct contacts of parts under voltage in case of In<30mA.RN11-1 Residual Current Circuit Breaker can be used in TN-S, TT and IT network systems or with other words in all systems where neutral and protective conductor are separated(VDE 0100 Teil 410).
Applications:
RN11-1 residual current circuit breaker is characterized by compact design, light weight, long service life, different handle colour for different rated current. RN11-1 Residual Current Circuit Breaker are widely used in electrical system. enterprise,post ect.
Specifications:
|
Product name |
RN11-1 |
|
Standard |
IEC61008/GB16196 |
|
Product Certifications |
CE,CB,3C |
|
Product Function |
Leakage protection, Isolation function |
|
Rated current(A) |
<25 <40 <63 |
|
Pole No |
1P+N 3P+N |
|
Rated voltage(V) |
230V/400V |
|
Rated frequency(Hz) |
50/60 |
|
Sensitivity (In) |
30mA,100mA,300mA |
|
Environment temperature |
-25°C-+60°C |
|
Connection type |
Tunnel style, Pin style, U style |
|
Biggest wiring ability |
35mm2 |
|
Action style |
AC22 |
|
Installation style |
35mm standard 35mm guide |
|
Im,Im(A) |
500 |
|
Inc,Ic(A) |
6000 |
|
Mechanical life |
10000 |
|
Protection degree |
IP20 |
|
Weight(g) |
220 |
Competitive Advantage:
The function of RN11-1 Residual Current Circuit Breaker 32A RCCB
1) Residual Current Circuit Breaker distribute and protect the electrical equipment
2) RN11-1 Residual Current Circuit Breaker is against overload
3) RN11-1 Residual Current Circuit Breaker is in reasonable price.
2 RN11-1 Residual Current Circuit Breaker has high quality
3. RN11-1 Residual Current Circuit Breaker conforms to IEC60898
