GB10963 Commercia 20A 3 Pole Circuit Breaker 230v / 400V IP
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Zhejiang,China(Mainland) |
|---|

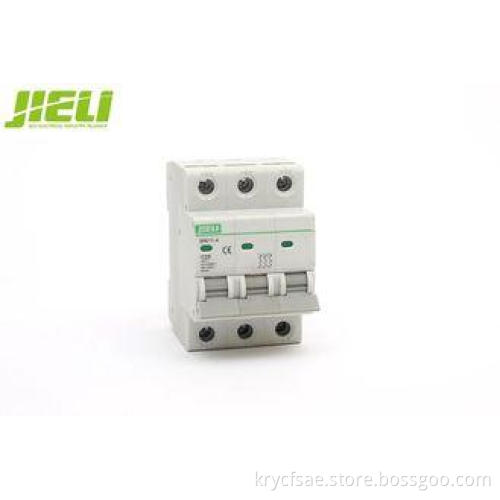

GB10963 Commercia 20A 3 Pole Circuit Breaker 230v / 400V IP20 OEM ODM
Quick Detail:
|
Place of Origin: |
Zhejiang China (Mainland) |
Brand Name: |
JIELI/ODM/OEM customized |
Model Number: |
JL-MN11-4 3 Phase circuit breaker |
|
Electricity Type: |
AC |
Number of Pole: |
1,2,3,4 |
Phase: |
3 |
|
Main Circuit Rating Voltage: |
AC 250V 50Hz in1 Pole, 415V in 2,3,4 pole |
Main Circuit Rating Current: |
1-63A |
Rated current: |
1-63A |
|
Characteristic curve: |
B,C,D |
Selective grade: |
3 |
Working Ambient temperature: |
-5℃~+40℃ |
|
Enclosed protective class: |
IP20 |
Electrical life: |
More than 8000 times |
Mechanical Life: |
More than 20000 times |
|
Max.fuse that can be connected to: |
100Agl(>10kA) |
Standard: |
EN60898(IEC60898),IEC60947 |
Rated breaking capacity: |
6,10kA IEC60898. |
Description:
* MN11-4 3 phase circuit breaker mini circuit breaker’s frame and parts adopts plastics of light weight, reliable performance, high inflammable resistance and shock resistance for long service life.
* MN11-4 3 phase circuit breaker mini circuit breaker has pleasing outlook&high breaking capacity etc.
* MN11-4 3 phase circuit breaker mini circuit breaker is neoteric in structure.
* And the frame and parts of MN11-4 3 phase circuit breaker mini circuit breaker adopt plastics of high fire resistant and shockproof.
* MN11-4 3 phase circuit breaker mini circuit breaker complies with IEC 60898 & GB10963-1999.
Applications:
1. MN11-4 3 phase circuit breaker mini circuit breaker is mainly suitable for overload and short circuit protection.
2. MN11-4 3 phase circuit breaker mini circuit breaker is especially used for illumination and distribution in industry and commerce.
3. MN11-4 3 phase circuit breaker mini circuit breaker is mainly used for overload and short circuit protection within the circuit of AC 50/60Hz,rated voltage of single pole 240V,two,three or four pole up to 415V.
4. MN11-4 3 phase circuit breaker mini circuit breaker can also be used for an infrequent switch-over of the circuit and illumination under normal conditions.
Specifications:
|
Item name : |
JL-MN11-4 3 phase circuit breaker |
|
Standard : |
IEC60898/GB10963 |
|
Product Certifications : |
CE,CB,3C |
|
Product Function : |
Short circuit protection, Over current protection |
|
Rated current(A) : |
2-63 |
|
No of pole : |
1P,2P,3P,4P,1P+N,3P+N |
|
Rated voltage(V) : |
230/400V |
|
Rated frequency(Hz) : |
50/60 |
|
Fiducial temperature : |
30°C |
|
Environment temperature : |
-35~70°C |
|
Installation style standard : |
35mm guide |
|
Connection type : |
Tunnel style, Pin style, U style |
|
Biggest wiring ability : |
25mm2 |
|
Magnetic tripping curve : |
B(3-5In),C(5-10In),D(10-20In) |
|
(ICU)Rated capacity of short circuit: |
6000 |
|
(ICS)Operation capacity of short circuit : |
6000 |
|
Mechanical life : |
10000 |
|
Electrical life : |
4000 |
|
Protection degree : |
IP20 |
