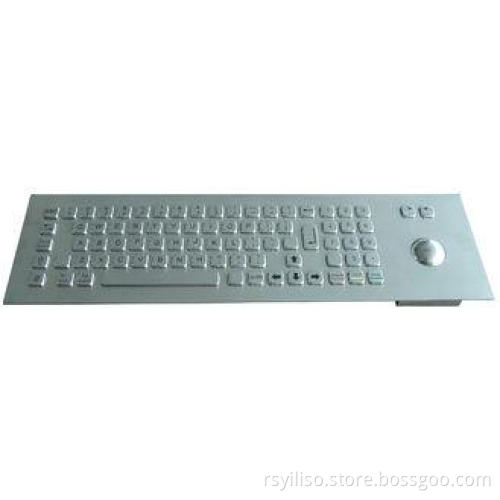

IP65 dynamic metal industrial pc keyboard With encrypting pin pad
Quick Details:
1. 38.0mm trackball, 3 kinds trackball module optional
2. IP65 dynamic vandal proof stainless steel industrial kiosk keyboard with trackball
3. CE,RoHS,FCC certified,IP65 test report.
Descriptions:
1. 81 Keys IP65 dynamic Vandal Proof Stainless Steel Industrial Keyboard
2. with top panel mounting solution
3. with 38.0mm stainless steel trackball module for fast and accurate cursor position with extremely smooth operation without
any noise
4. industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for
fast and accurate data input without any noise,
5. with integrated PINPAD with Encryption Electronics Controller supporting DES/TDES)
6. 3 optional trackball modules:
------IP65 static mechanical trackball module with 400 DPI
-----IP68 dynamic optical trackball module with 800 DPI
------IP68 dynamic laser trackball module with 1200 DPI
Special Features:
1. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design,
functionality, longevity and high protection level.
2. We design and manufacture complete electronic modules including controller in close consultation with our customers.
3. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under
extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
4. Waterproof execution according to degree of protection IP65 from the panel, the keyboard is sealed against the ingress or
liquid and dirt, when mounted in a suitable enclosure.
5. The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data
input without any noise. With firm tactile perception for comfortable operation
6. Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent
lettering rub-off.
7. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key
covers.
8. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
9. Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables for main keyboard and
pointing devices for pluging directly into the host computer for normal keyboard operations.
10.The integrated EPP (encryption PINPAD) is with encryption module supporting DES/TDES for bank usage of bank kiosks,
CDM/ATM. RS232 interface for EPP
11. Optional Trackball Modules:
-----IP65 static mechanical trackball module with 400 DPI,
-----IP68 dynamic washable optical trackball module with 800 DPI,
------IP68 dynamic washable laser trackball module with 1200 DPI,
Pls.see below table:
|
Product Name |
IP Rated TB |
||
|
K-TEK-A420-MTB-PP |
Keyboard; IP65 static Mechanical Trackball |
PS/2;USB |
IP65 static |
|
K-TEK-A420-LTB-PP |
Keyboard; IP68 dynamic Laser Trackball with 1200 DPI; Numeric Keypad; |
PS/2;USB |
IP68 dynamic |
|
K-TEK-A420-OTB-PP |
Keyboard; IP68 dynamic washable Optical Trackball with 800 DPI; Numeric Keypad; |
PS/2;USB |
IP68 dynamic |
Applications:
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied bank access
applications,Bank kiosks, ATM, CDMs etc
Specifications:
|
COMMUNICATION PARAMETER: |
|
|
Standard RS232 serial interface. |
|
|
Communication velocity |
19200, 9600, 4800, 2400, 1200bps. |
|
Data format |
N, 8, 1. |
|
15 actuators |
0, 1, 2, 3, 4, 5, 6, 7, 8, 9, correct, enter, cancel, backup key 2 defined for ABC. |
|
Data encryption and decryption (DES/TDES), MAC Algorithm. |
|
|
Encryption rate |
< 1 second. |
|
MECHANICAL DATA |
|
|
Key |
81 keys, super quality SUS304 brushed stainless steel |
|
Key top style |
Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available |
|
Key Size |
14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100mm for space bar. |
|
Key travel |
2.0mm |
|
Tracker ball |
38.1mm (1.5’) diameter, IP65 static 400DPI mechanical trackball module, IP68 dynamic washable 800DPI optical trackball module, IP68 dynamic washable 1200DPI laser trackball module |
|
Switch life |
more than 10 million of operations |
|
Actuation Force |
0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point) 1.2N +/-0.1N for key 14.0mm x 28.0mm (pressure point) |
|
Front Plate |
Super quality brushed stainless steel |
|
Lettering |
Sunk laser legends & characters in high quality ink |
|
Actuator/keys materials |
stainless steel |
|
G.W. |
2.00KGs |
|
Dimensions |
420.0mm x 125.0mm (top panel) |
|
COMMUNICATION PARAMETER: |
|
|
Standard RS232 serial interface. |
|
|
Communication velocity |
19200, 9600, 4800, 2400, 1200bps. |
|
Data format |
N, 8, 1. |
|
15 actuators |
0, 1, 2, 3, 4, 5, 6, 7, 8, 9, correct, enter, cancel, backup key 2 defined for ABC. |
|
Data encryption and decryption (DES/TDES), MAC Algorithm. |
|
|
Encryption rate |
< 1 second. |
|
MECHANICAL DATA |
|
|
Key |
81 keys, super quality SUS304 brushed stainless steel |
|
Key top style |
Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available |
|
Key Size |
14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100mm for space bar. |
|
Key travel |
2.0mm |
|
Tracker ball |
38.1mm (1.5’) diameter, IP65 static 400DPI mechanical trackball module, IP68 dynamic washable 800DPI optical trackball module, IP68 dynamic washable 1200DPI laser trackball module |
|
Switch life |
more than 10 million of operations |
|
Actuation Force |
0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point) 1.2N +/-0.1N for key 14.0mm x 28.0mm (pressure point) |
|
Front Plate |
Super quality brushed stainless steel |
|
Lettering |
Sunk laser legends & characters in high quality ink |
|
Actuator/keys materials |
stainless steel |
|
G.W. |
2.00KGs |
|
Dimensions |
420.0mm x 125.0mm (top panel) |
|
ELECTRICAL DATA |
|
|
Supply Voltage |
+5V DC +/-5% |
|
Current Rating |
appr. 30mA |
|
EMC Standard: |
It is compliance with the council IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004 |
|
EMI: |
EN 55022: 2010 |
|
EMS: |
EN 55024:2010 |
|
Lifespan |
> 5 years |
|
Switch Contact Material: |
Carbon-on-Gold key switch technology PCB. |
|
If needed, numeric keypad is available to be with encryption electronics controller supporting DES/Triple DES. |
|
|
Interface: |
Interface: PS2, USB available, RS232 for EPP |
|
OS: |
All windows, Linux, Unix, Mac OSX |
|
ENVIRONMENTAL ADAPTABILITY |
|
|
Operating temperature |
-20oC to +60oC |
|
Storage temperature |
-30oC to +70oC |
|
Operating RH |
30-90% |
|
Atmospheric pressure |
60-106Kpa |
|
Saline mist |
96 hours, IEC 60512-6 |
|
Damp heat test at + 40oC |
21 days, IEC 60512-6 |
|
Dry heat test at + 85oC |
10 days, IEC 60512-6 |
|
RELIABILITY |
|
|
Certification |
RoHS Compliant, CE and FCC,IP65, ESD. |
|
Protection Level |
IP65(front panel) |
|
Vandal resistant |
IK09 |
|
Key Lifespan |
>10 million actuations |
|
MTBF |
>50000H |
|
MTTR |
<30min |
