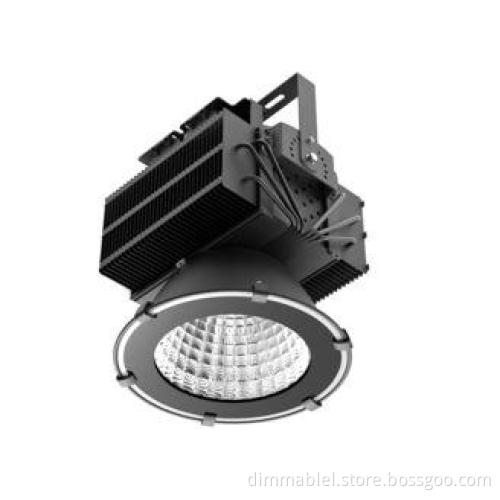

50000Lm IP65 Cree Led High Bay / LED floodlights for high lumen flootball field
Ableled IP65 high bay/floodlight feature:
216 °adjustable angle
13 flexible positions makes project angle can be adjusted within 216 °.
Copper heatpipe
By riveting the heatpipe to the fins , the heatpipe can conduct heat rapidly from chips bottom to
the fins,
greatly lower down the temperature of light source, extending its life span.
Respirator design
Waterproof design, eliminating mist, avoiding condensation,improving quality,extending the life span.
92% reflective rate
Reflector's beam angel 62 °,Reflective rate could reach up to 92%.
Ableled floodlight Specifications :
|
Input Voltage |
AC90V-305V |
|
|
Current Frequency |
50HZ-60HZ |
|
|
LED Light Source |
CREE-XBD |
|
|
LED driver |
Meanwell driver |
|
|
LED Consumption |
500 W |
|
|
Led Luminous Efficiency |
100-110lm /W |
|
|
LED Initial Flux |
50000Lm |
|
|
lamp’s Efficiency |
＞85% |
|
|
Illuminance Uniformity |
＞0.8 |
|
|
Color Temperature |
2700K-7000K |
|
|
Color Rendering Index |
Ra＞75 |
|
|
Light Distribution |
symmetrical/Rectangle |
|
|
Light Design |
LED+lens second light |
|
|
LED Junction Temperature |
≤55℃ |
|
|
Working Temperature |
-40℃ ~55℃ |
|
|
Storage Temperature |
- 40℃ ~+55℃(25℃ is better) |
|
|
IP Grade |
IP65 |
|
|
Net weight |
16KG |
|
|
Working Life-span |
50000H |
|
|
Power line |
1mm2 |
|
|
Connect Wire |
Brown |
L |
|
Blue |
N |
|
|
Yellow +Green |
G |
|
|
Certificate |
CE , ROHS, PSE, VDE, SAA |
|
|
The color of the lamp shell |
Black |
|
Application:
Ableled high bays are widely used in football field, high building, construction, Metal halide replacement, long distance light needed, Workshop, warehouse, toll station, gas station, supermarket, gymnasium, exhibition hall, and other public lighting places.
Competitive Advantage:
Original CREE-XBD LED chip, Meanwell driver, Good heat sink. The most important: competitive price
