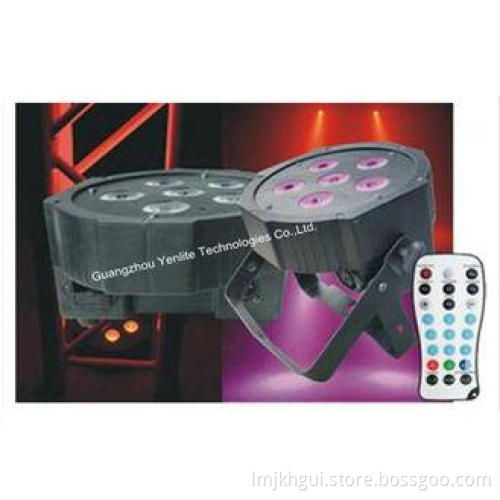

60W Bar Disco Professional LED Stage Lighting , lED Par Light Fixtures
Quick Detail:
6*10w rgbw 4 in 1 led infra red remote par YL-R002
1.LED display, easy to control
2.4/7 channel, for R, G, B, W,dimmer, strobe, fade, color snap.
3. 0--100%Linear dimmer and variable strobe speed, fade effect
4.Advanced LED technology,long lifespan(rated 100,000hrs)
5.2 fan heat dissipation, good cooling system
6.Power in/ out sockets, easy to connect with other units.
7. Infra red remote range: 5-8 meters
7.Compact plastic housing, mini size and light weight
8.Perfect for Discothques, Bars, Parties, Mobile DJs, Museum, Charity, theater, Wedding etc.
8.White and black housing is optional
Specifications:
|
Model Name: |
6*10w rgbw 4 in 1 led infra red remote par |
|
Model No.: |
YL-R002 |
|
Power Supply: |
AC110v--240v 50/60Hz |
|
Power consumption: |
60W |
|
Light Source: |
6*10w 4in 1 led |
|
Beam Angle: |
25 (45 degree is selectable) |
|
DMX Channels: |
4/7 |
|
Control mode: |
Sound Control/Auto/Master and Slave/DMX/ Infra red remote |
|
Certification |
CE, RoHS |
|
Package Size: |
23.5*17*23cm |
|
Gross Weight: |
1.5kgs |
Description:
DMX SET
8 DMX Channels
|
Channel |
Level |
Function |
|
Ch1 |
0-255 |
General-dimmer. Linear intensity adjustment 0-100% |
|
Ch2 |
0-255 |
Linear Strobe frequency adjustment from 1 to 20HZ |
|
Ch3 |
0-50 |
DMX Mode |
|
51-100 |
Step changing Speed from slow to fast |
|
|
101-150 |
Cross fade Speed from slow to fast |
|
|
151-200 |
Strobing Speed from slow to fast |
|
|
201-255 |
Sound active |
|
|
Ch4 |
0-255 |
Auto running Speed from slow to fast |
|
Ch5 |
0-255 |
Red Linear adjustment 0-100% |
|
Ch6
|
0-255 |
Green Linear adjustment 0-100% |
|
Ch7
|
0-255 |
Blue Linear adjustment 0-100% |
|
Ch8
|
0-255 |
White Linear adjustment 0-100% |
The Remote is one by one
1.Before controlling the par light by the remote, matching code for remote with par light is
necessary. First, make Remote control code:press light the "menu "key:untill digital display
show [ADDR],and then press the" Enter "key 5 seconds The digital display show [rFrt},
accompanied by flashes, at the same time use the remote control to the machine infrared
receiver head to puss the remote controlany key. It is the success of the code. (Each
machine can store three remote control code)
2.Clear the code: press the light "menu"key,Untill digital display show[ADDR], then press
"enter" key 5 seconds, the digital display show [rFrt},at the same time press then press
the"menu" key to return to clear the stored remote control code.
3.Set Dmx Address: Push the remote control (S.A) key 5 seconds, and then the digital
display will show [Addr] and flashing, then press the number keys to enter the address code,
5 seconds to confirm
4.Set Dmx Address: Push the remote control (SC) key 2 seconds, then the digital display will
display the [Chnd} and flashing, then press the number keys to enter the address code 5
seconds to confirmed
4 Channel: the corresponding remote control (1) key
7Channel: the corresponding remote control (2) key
Any our remote can re-site the code ,can finish one by one.
