High accuracy Hardness 31 - 650HBW Brinell Hardness test ma

High accuracy Hardness 31 - 650HBW Brinell Hardness Testing HB SCALER Automatic Measuring System

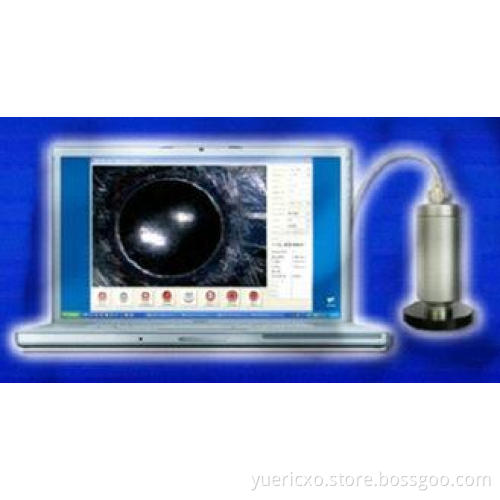

SADT HB SCALER is an optical measuring system which can automatically measure the size of

indentation from Brinell hardness tester and gives the Brienll hardness readings. All values and

indentation images can be saved in PC. With the software, all values can be processed and printout a

s a report.

KEY FEATURES
High accuracy: SPAN>0.01mm
Measuring automatically
Read out in HBW and mm
All HB readings and images can be saved as Excel or tif format
Print out test report
Quick respond: <0.001s


Measuring scale: HBW10/3000, HBW10/1000, HBW5/750, HBW5/250, HBW2.5/187.5
Measuring range: Indent: 0.6-6mm
Hardness: 31-650HBW
Resolution: 0.1HBW
Respond interval: <0.001m
Power Supply: From USB port
Weight: 350g (Measuring haed)
Dimension: 170 x ?0mm
