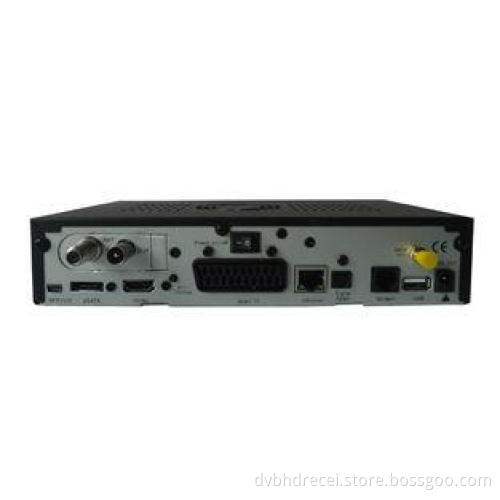

HDMI Dm800 SE C wifi HD Cable TV Receiver DVB-C SIM2.10 Lin

- 400 MHz processor

- SIM2.10 card

- BL 84# and GP510

- 6cm quiet fan and HDMI connector

- 3 Logo for choose: original / Sunray

- supports the Linux TV API

- 10/100MBit compatible Ethernet Interface

- HDMI connector

- plug & play Tuner

- colored OLED display

- plug & play slot for an internal 2,5" SATA hard disk

• 400 MHz MIPS Processor
• Enigma 2, Linux Operating System
• colored OLED - Display
• MPEG-2 / H.264 Hardware decoding
• Tuner: DVB-C, optional: DVB-s, DVB-T
• Tuner Module, Plug&Play
• 2 x Smartcard-Reader (Dreamcrypt CA)
• Mini USB for Service and software update
• 10/100Mbit Ethernet Interface
• 1 x Scart (RGB, FBAS or S-Video)
• HDMI
• 2 x USB 2.0 (e.g keyboard)
• analog modem
• S/PDIF Interface for digital bit stream out (AC-3)
• 64 MByte Flash, 256 MByte RAM
• SATA
  - for internal HDD 2,5?
• unlimited channel lists for TV/Radio
• channel-change time < 1 second
• automatic service scan
• directly bouquet-lists
• EPG (electronic program guide)
• multiple LNB-Switching control (supports DiSEqC)
• OSD in many languages and skin-support
• Videotext Decoder
• extern 12V power supply
• 800HD se Technical Data

  Video decoder:
  Video Compression MPEG-2 and MPEG-1 compatible, H.264
  Video Formats 4:3 / 16:9
  Letterbox for 4:3 TV-Device

• Audio decoder:
  Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
  Audio Mode Dual (main/sub), Stereo
  Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

• Output analog:
  Output Level L/R 0,5 Vss on 600 Ohm
  THD > 60 dB (1 kHz)
  Crosstalk < -65 dB

• Output digital:
  Output Level 0,5 Vss on 75 Ohm
  Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
  S/PDIF-Output optical, Toslink

• Ausgang Video:
  Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm

• Video parameter:
  Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
  Teletext filter in conformity with ETS 300 472 Standard

• TV-Scart:
  Output: FBAS, RGB, S-Video

• Mini USB service connector:
  Function: Update of Firmware

• Ethernet:
  10/100 MBit compatible interface
  Function: Update of Firmware

• Analoge modem:
  analoge modem for Internet connection

• SATA Interface:
  for internal 2.5" HDD

• USB: 2 x USB 2.0

• LNB power and polarisation per tuner:
  LNB Current 500mA max.; short-circuit-protected
  LNB Voltage vertical < 14V no load, > 11,5V at 400mA
  LNB Voltage horizontal < 20V no load, > 17,3V at 400mA

• Count of active satellite position:
  DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control)

• Power consumption: < 15W at 12V

• External PSU
  Input: 110-240V AC / 50-60Hz / 0,6A
  Output: 12V = / 3,0A

• Physical specification:
  Ambient Temperature +15°C...+35°C
  Humidity < 80%
  Size (W x D x H): 225 mm x 145 mm x 52 mm
  Weight: 940 g without HDD

• 1x 800HD se wifi SIM2.10 DVB-C receiver

  1x Remote Controller

  1x HDMI Cable

  1x Power Supply+Power Cable

  1x Scart-AV adapter

  1x AV Cable

• 1x wifi antenna
