Industrial Leather Testing Equipment , Leather Crumpling Re
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

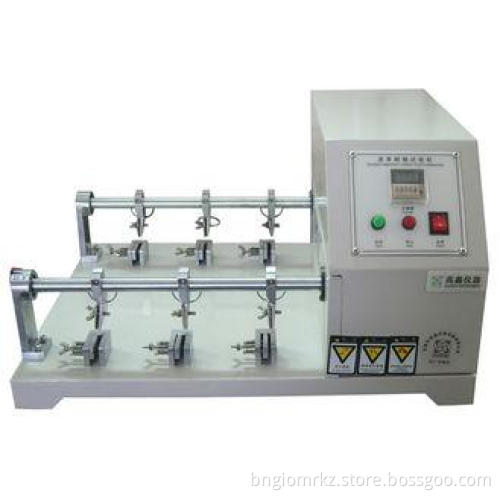

industrial Leather Testing Equipment , leather crumpling resistance tester
Quick Details
|
Name |
leather crumpling resistance tester |
|
Function |
crumpling resistance of leather |
|
Power |
1∮,AC220V,3A |
|
Weight |
78kg |
|
Volume |
64×50×35cm |
|
Counter |
LED digital |
2. Description
Leather testing machine for leather crumpling resistance testing of PU is applied to test the crumpling resistance of leather, rubber, cloth and other materials, clamped the specimen by testers fixture, it looks like a cross. And then the tester is bending and rubbing the material until a certain times, after that removed the specimen, Observing the surface of material is rupture, wrinkle, fade or not. The tester automatic counting, automatic stop.
3. Features
1. Testing result is accurate
2. Structure is simple and easy to operate
3. Made according to related corresponding international standard.
4. Able to custom according to customer’s specific requirement.
4. Specifications
|
Model |
GX-5025 |
|
Fixture |
70 X 45mm |
|
Angle of Bending |
22.5° |
|
Speed |
100±5cpm |
|
counter |
LED, 0~9999 |
|
Corresponding standard |
BS-3144,JIS-K6545,ISO 5402:2002, QB/T 2714-2005
|
