Wafer Double Flanged Butterfly Valve , Manual / Hydraulic / Pneumatic 3 Way Valve

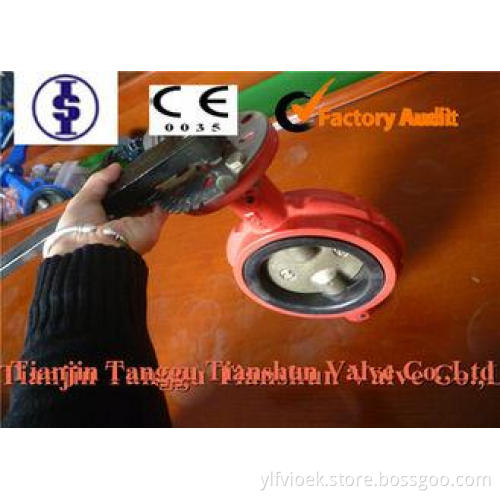

Wafer Butterfly Valves of Wafer Butterfly Valves With Notch on the body
Quick Details
| Standard or Nonstandard: | Standard | Structure: | Butterfly | Pressure: | Medium Pressure,PN 10/ PN 16 |
| Power: | Manual hydraulic pneumatic | Material: | Casting | Temperature of Media: | Normal Temperature |
| Media: | water, gas, oil | Port Size: | 1"-12" | Place of Origin: | TIANJIN China (Mainland) |
| Model Number: | 2"-12" | Brand Name: | Color: | Blue Red | |
| Disc: | SS 316/DI/ Nylon/PTFE | Seat: | NBR/Viton/PTFE |
Packaging & Delivery
| Packaging Detail: | Plywood Cases for Exporting |
| Delivery Detail: | 30 DAYS |
Specifications
1. Standard: GB 12238 BS5155 API609, MSS SP-76,DIN 3202-K1 (ISO 5762 T5).
2. Safe working pressure: PN6,10,16
3. Size: 2"-14"
Wafer Butterfly Valve
1. Size: 2"(DN50) ~ 14" ( DN350).
2. With soft/back-up seat and double D or TD type disc without pin.
3. Operated stype:Handles (2" to 12")
Manual Gear Operators (2" to 14")
Electric or pneumatic actuators (2" to 14")
4.Standard: GB 12238 BS5155 API609, MSS SP-76,DIN 3202-K1 (ISO 5762 T5).
5. Flange Drilling Standard: GB9112-88,DIN2501,BS4504,ISO2084,ISO2531,BS10-E,ANSI125/150,ASA125/150,AS2129 Table D/E.
6. Valve tested: API598
7. Safe working pressure: PN6,10,16.
| Size | A | B | C | D | E | F | G | K |
| 50 | 100 | 80 | 43 | 32 | 12.6 | 6.7 | 50 | 65 |
| 65 | 113 | 89 | 46 | 32 | 12.6 | 6.7 | 50 | 65 |
| 80 | 124 | 95 | 46 | 32 | 12.6 | 6.7 | 50 | 65 |
| 100 | 152 | 114 | 52 | 32 | 15.77 | 6.7 | 70 | 90 |
| 125 | 152 | 127 | 56 | 32 | 18.92 | 10.3 | 70 | 90 |
| 150 | 165 | 139 | 56 | 32 | 18.92 | 10.3 | 70 | 90 |
| 200 | 205 | 75 | 60 | 40 | 22.10 | 10.3 | 102 | 125 |
| 250 | 253 | 203 | 68 | 40 | 28.45 | 14.3 | 102 | 125 |
| 300 | ||||||||
| 350 |
We specialize in producing wafer butterfly valve(lever, electric ,pneumatic ),middle line flange butterfly valve, double eccentric butterfly valve ,U type butterfly valve ,lug type butterfly valve,butterfly check valve ,gate valve and dismantling joint which is used in connecting pipes. Our products are exported to USA, Spain ,UK, Germany , Turkey as well as Korea, Singapore ,Thailand and Malaysia etc. not only have been accepted but also receive good reputations around the world .
