Single Flanged Ductile Iron Lug Butterfly Valve Pneumatic Actuator , Automated
Product Description:
Size:DN50-DN300
Standard pressure:PN10,PN16
Design standard:MSSSP-67,API609,EN593
Testing standard:API598,ISO5208
Face to face:JIS10K,ANSIB16.1
|
Name |

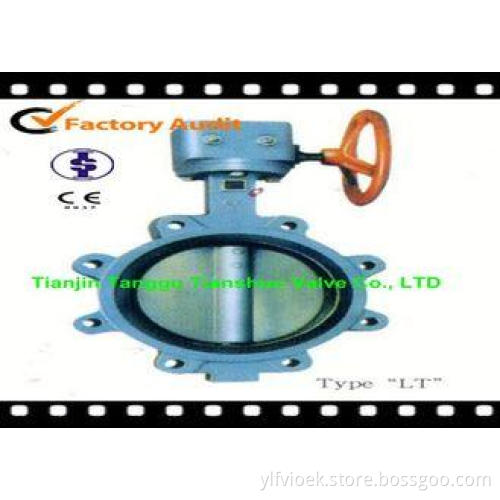

Ductile Iron Single Flanged '' LT '' Butterfly Valve / Lug Butterfly Valve |
||||||
|
Brand |
TST(Tianshun) |
||||||
|
Model NO. |
D71 |
||||||
|
Size |
DN50-DN300 |
||||||
|
Suitable medium |
Water,Waste liquid,Vapor,Food,Medicine,Oils etc. |
||||||
|
Apply to standards |
DIN, BS, API, MSS, ANSI, JIS, ISO etc |
||||||
|
Drving style |
Lever , gear , actuator , pneumatic |
||||||
|
Standard pressure |
PN10,PN16 |
||||||
|
Certification: |
ISO9001/2000,CE |
||||||
|
Trade Term |
FOB |
||||||
Material:
-
The body material: CAST IRON/DUCTILE IRON/CARBON STEEL
-
The disc material: DUCTILE IRON /SS304/SS316/SS410/SS416/AL-BZ
-
The stem material: SS410/SS416/SS304/SS316
-
The seat material: NBR/EPDM/PTFE/VITON
Pressure & Temperature ratings:
|
Working Pressure |
PN6, PN10 / PN16/PN20/PN25 |
|
Testing Pressure |
Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. |
|
Working Temperature |
-10°C to 80°C (NBR) -10°C to 120°C (EPDM) |
|
Suitable Media |
Water, Oil and gas. |
About Us
We, Tianjin Tanggu Tianshun Valve Co., Ltd., have manufactured butterfly valves for 21 years. We have manufactured kinds of butterfly valves for your choose including Wafer, Lug, U type, D341(centerline double flanged butterfly valve), D343(double eccentric flanged butterfly valve), Grooved end type, Double disc wafer check valve, Flapper check valve, Eccentric plug valve, Half-lug or no-lug type, Dismantling joint etc. Our brand is TST. We regard the quality and reputation as our company’s life.
