PTFE Sealing Ring Double Flanged Butterfly Valve PN20 PN25
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Tianjin,China |
|---|
PTFE Sealing Ring Double Flanged Butterfly Valve PN20 PN25 With Lined

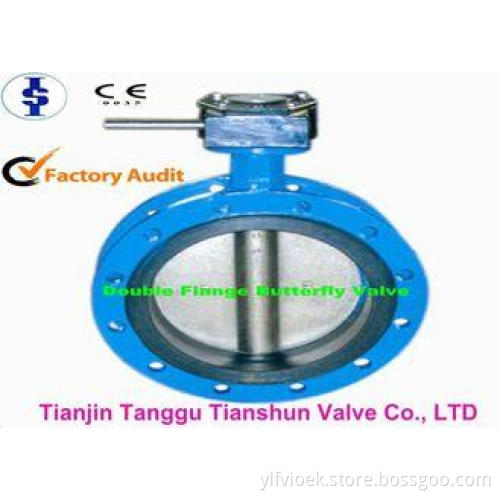

Double Flange Butterfly Valve With Lined Wth PTFE Sealing Ring
Size:DN50-DN1200(2''-48'')
Standard Pressure:PN10, PN 16, PN 20, PN 25
Design Standard:ANSI/AWWA C504/EN593
Flange Standard:DINPN10,DINPN16,ANSIB16.1,BS4504,ISOPN10,ISOPN16,JISB2212/2213
Working Temperature:-10°C to 80°C (NBR)
-10°C to 120°C (EPDM)
Suitable Media: Water, Oil ,Gas, Acid And Alkali Metal
Main Material:
|
Parts |
Materials |
|
Body |
Cast iron, ductile iron, carbon steel |
|
Disc |
Ductile iron /CF8/CF8M/ Al -bronze / WCB |
|
Seat |
EPDM / NBR / VITON / PTFE |
|
Stem |
Stainless steel / Carbon steel |
|
Bushing |
PTFE/LUBRICATING |
|
“O” ring |
EODM/NBR/VITON/NEOPRENE |
Product Feature:
1. Structure length comply with international standard,facilitate international sales.
2. Body lining of rubber vulcanization ensure a stable driving torque.
3. Ends of body rubber vulcanization adopt water line to fulfil various forms of the flange sealing requirements.
4. Apply for single standard valve installation.
5. Simple structure,pins connect the stem and plate of valve,steadily positioning.
Company Profile:
We,Tianjin Tanggu Tianshun Valve Co., Ltd established in 1993,specialised in valves about 19 years.We have advanced equipment and guarantee that all the products will keep in good repair in 1 year , 30000 times on/off without leakage under normal use , During the guarantee period , we will take all the responsibility of the losing which is caused by our quality problem.
Product Show:
Other Products:
Our Workshop:
