Falling Rock protective mesh slope reinforcement plastic coated wire mesh

Specifications

1. wire diameter:3mm or 4mm
2. high tensile strength 1770Mpa
3. mesh size:103mm x 180mm
4. Mesh shape: diamond
5. Material: high tensile steel wire mesh

1) tecco Mesh Specification:

Mesh shape: diamond

Material: high tensible carbon steel

Wire strength:1770Mpa

Wire diameter:3mm

Corrosion protection: super coating

Coating:150g/m2

Mesh opening:103mm x 180mm

Breaking load of single wire:12.5KN

Tensile strength:110KN/m

2) TECCO mesh standard roll:

Mesh edges knotted

Roll width:1-3.5m

Roll length:10m or 30m

Weight:1.45kg/m2

3) Feature:

1. anti-corrosion

2. Easy to install

3. Don't need maintenance

4) TECCO mesh:

Components

The TECCO system consists of four main components that are carefully coordinated with each other:

1). TECCO steel wire mesh

TECCO mesh is made of high-tensile steel wire with an ultimate tensile strength of 1770 N/mm2.

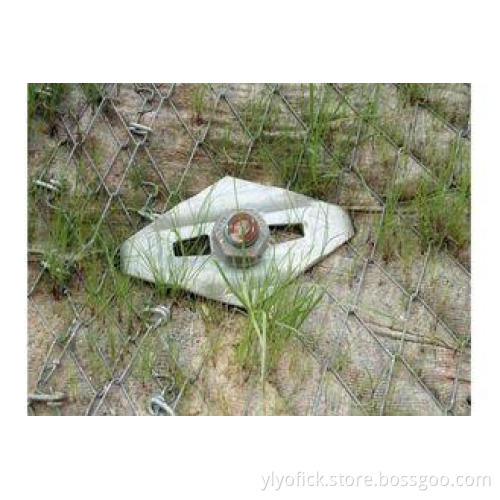

2). TECCO spike plates

Rigid spike plates that are reinforced with ribbing ensure optimal load transmission from soil or rock anchors

to the TECCO mesh.

These plates are placed over the anchor heads and tightened to pre-tension the mesh onto the slope.

The plates are galvanized and have dimensions of 13.0''*7.5"*0.4"(330mm*190mm*10mm).

3). TECCO connection clips

The connection clips high-strength steel wire connection clips enable mesh sections to be joined without

overlapping and still guarantee one hundred percent transfer of forces.

These claw are hot dip galvanized and consist of 0.25"(6mm) thick steel spiral.

4). Soil or rock nails

Adapted to the local soil and rock static requirements, the TECCO mesh can be anchored in accordance with

our dimensioning concept with commercial soil or rock nails.

The main anchors of the system are installed in a grid typically from 6.6 to 13.1 ft (2.0 to 4.0m)horizontal and

vertical spacing.Actual spacing depends upon the results of site analysis and modeling.Anchor consist of

commercially available steel bars ranging from 1.0 to 1.25 ft (25 to 32mm).

Selfdrilling grout injection anchors are also permitted.Additional anchors may also be used to provide added

support at boundaries and in low points and hollows.
