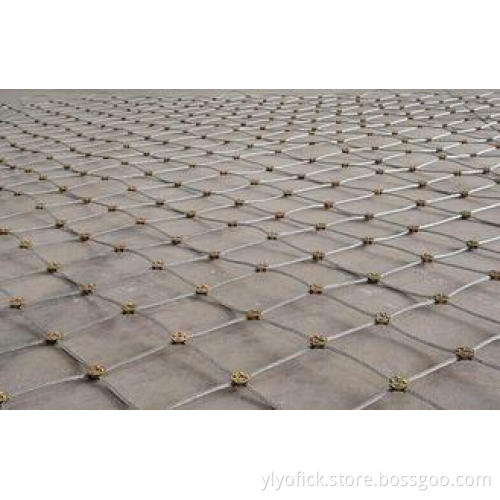

WICCO System SNS steel tecco mesh wire rope Net slope stabilization
The WICCO System technology has quite mature. And The System is extensive
application in recent years.
Components
WICCO system consists of the diamond wire rope net, grid net, anchors, anchor bearing plate ,
border and seaming ropes and net connection elements.
Standard Specification:
Diamond wire rope net: Rope wire diameter: 8mm;Hole size: 300mm (+/5%);Roll size: 4m x 4m, 4.5m x 4.5m
etc.
Grid net:
Wire diameter: 2.0mm or 2.2mm;Hole size: 50mm*50mm;Roll size: 2m*20m
Anchors: Deformed steel bar anchor diameter: 25mm or 28mm;Length:2m -5m;
Anchor bearing plate: 320mm x 170/180mm
Rope:
Border rope diameter: 12mm or 16mm;Seaming rope diameter: 8mm
Specification:
|
Opening(mm) |
Wire diameter(metal wire)(mm) |
Wire diameter(PVC coate)/inner/outside*(mm) |
strands |
|
60*80 |
Ø2.0-2.8 |
Ø2.0/3.0-2.5/3.5 |
3 |
|
80*100 |
Ø2.0-3.2 |
Ø2.0/3.0-2.8/3.8 |
3 |
|
80*120 |
Ø2.0-3.2 |
Ø2.0/3.0-2.8/3.8 |
3 |
|
100*120 |
Ø2.0-3.4 |
Ø2.0/3.0-2.8/3.8 |
3 |
|
100*150 |
Ø2.0-3.4 |
Ø2.0/3.0-2.8/3.8 |
3 |
|
120*150 |
Ø2.0-4.0 |
Ø2.0/3.0-3.0/4.0 |
3 |
steel wire rope mesh and tecco mesh slope stability
