Custom Ice Tower Fountain Nozzle Heads Fixed / Ajustable fo
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description

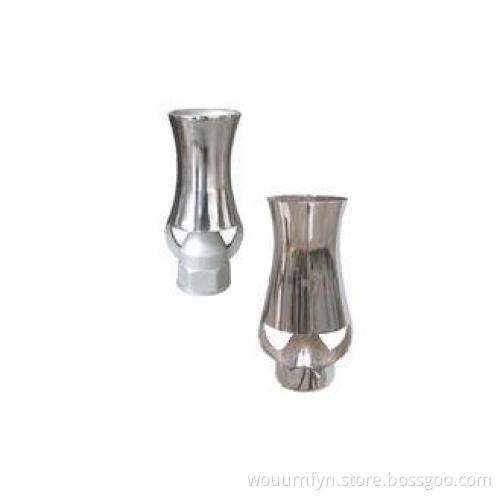

Custom Ice Tower Fountain Nozzle Heads Fixed / Ajustable for Garden / Hotel Ponds
Quick Detail:
|
Name |
Material |
Application |
Type |
Thread |
|
Ice Tower Fountain Nozzle |
brass, brass chromplated, stainless steel 304 |
Garden, hotel, pool, pond |
Fixed and Ajustable |
internal |
Description:
Yicheng High Quality Ice Tower Nozzles, with its Special new and perfect design and made by high quality brass or brass chromeplated, Which are popular and idea choice for domestic and oversea customers.
Yicheng High Quality Ice Tower Nozzles create aice tower. the crystal-clear and wind resistant jets come out of the nozzles like pinetrees
Specifications
Stainless Steel 304 Material:
| Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) | (kg) | |
| CBtT50 | 80-400 | 35-45 | 1-10 | 0.8-1.0 | 2" | internal thr. | Ф73 * Ф19 * 1 | 200 | 94 | 1.1 | |
| CBtT40 | 50-300 | 20-35 | 1-8 | 0.5-0.6 | 1 1/2" | Ф63 * Ф19 * 1 | 185 | 95 | 0.9 | ||
| CBtT25 | 40-200 | 8-12 | 1-5 | 0.2-0.3 | 1" | Ф46 * Ф12 * 1 | 135 | 61 | 0.4 | ||
| CBtT20 | 40-100 | 3-5 | 1-3 | 0.2 | 3/4" | external thr. | Ф30 * Ф10 * 1 | 90 | 44 | 0.15 | |
| CBtT15 | 40-100 | 2-4 | 1-3 | 0.15 | 1/2" | Ф25 * Ф8 * 1 | 71 | 33 | 0.1 | ||
Brass Material:
| Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) | (kg) | |
| CBtT80 | 80-450 | 55-65 | 1-12 | 1-1.5 | 3" | external thr. | Ф91 * Ф24 * 1 | 283 | 123 | 1.66 | |
| CBtT65 | 80-450 | 55-65 | 1-12 | 1-1.5 | 2 1/2" | internal thr. | Ф91 * Ф24 * 1 | 283 | 123 | 1.66 | |
| CBtT50 | 80-400 | 35-45 | 1-10 | 0.8-1.0 | 2" | Ф73 * Ф19 * 1 | 200 | 94 | 1.1 | ||
| CBtT40 | 50-300 | 20-35 | 1-8 | 0.5-0.6 | 1 1/2" | Ф66 * Ф16 * 1 | 180 | 86 | 0.75 | ||
| CBtT25 | 40-200 | 8-12 | 1-5 | 0.2-0.3 | 1" | Ф46 * Ф12 * 1 | 123 | 60 | 0.35 | ||
| CBtT20 | 40-100 | 3-5 | 1-3 | 0.2 | 3/4" | external thr. | Ф30 * Ф10 * 1 | 89 | 44 | 0.13 | |
| CBtT15 | 40-100 | 2-4 | 1-3 | 0.15 | 1/2" | internal thr. | Ф25 * Ф8 * 1 | 71 | 33 | 0.07 | |
