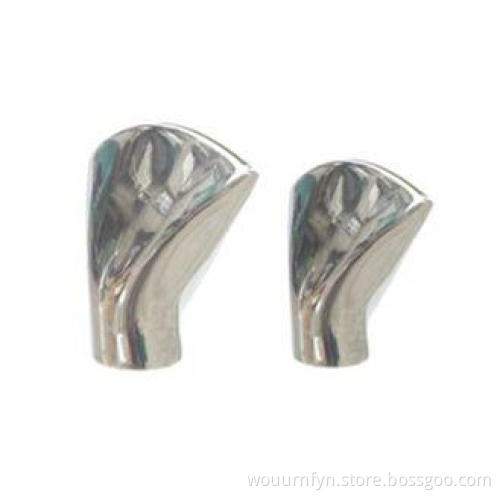

Brass / Stainless Steel Fan Water Fountain Nozzles Copper / SS304
Description:
The Fan Nozzles, with its Special new and perfect design and made by high quality brass or brass chromeplated, Which are popular and idea choice for domestic and oversea customers.
When water flow from the flat nozzle spray fan water film formation. General is given priority to with combination model.
The Fan Nozzle has a ball connector which allows 15 degree adjustment vertically. When rows of Duckbill Shape Spray Nozzles working simultaneously, big wave would be produced which is splendid and beautiful. Combining with the ligting system, it would be more beautiful in the night.
Specifications
Stainless Steel 304 Material:
| Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) | (kg) | |
| MSxT40 | 40-100 | 16-28 | 0.5-1.0 | 0.8-1.5 | 1 1/2" | internal thr. | Ф127 * Ф4 * 1 | 120 | 131 | 0.9 | |
| MSxT25 | 40-100 | 8-15 | 0.3-0.8 | 0.6-1.2 | 1" | Ф93 * Ф4 * 1 | 110 | 100 | 0.6 | ||
| MSxT20 | 60 | 3-4 | 0.2-0.6 | 0.4-0.8 | 3/4" | Ф66 * Ф2.6 * 1 | 85 | 78 | 0.3 | ||
Brass and Brass Chromplated Material:
| Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) | (kg) | |
| MSxT50 | 40-100 | 18-30 | 0.6-1.3 | 1.0-2.2 | 2" | internal thr. | Ф121 * Ф5 * 1 | 145 | 138 | 1.4 | |
| MSxT40 | 40-100 | 16-28 | 0.5-1.0 | 0.8-1.5 | 1 1/2" | Ф115 * Ф4 * 1 | 120 | 131 | 0.8 | ||
| MSxT25 | 40-100 | 8-15 | 0.3-0.8 | 0.6-1.2 | 1" | Ф87 * Ф4 * 1 | 110 | 105 | 0.6 | ||
| MSxT20 | 60 | 3-4 | 0.2-0.6 | 0.4-0.8 | 3/4" | Ф63 * Ф3.5 * 1 | 83 | 78 | 0.3 | ||
