Small Air Mixed Trumpet Water Fountain Nozzles for Pool Wat
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

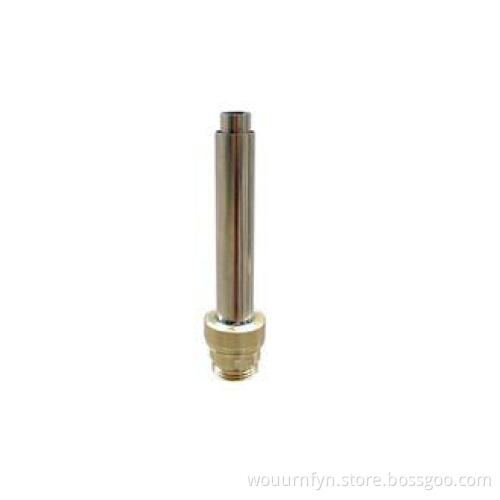

Brass / Stainless Steel Small Air Mixed Trumpet Water Fountain Nozzles Copper / SS304
Description:
The Small Air Mixed Trumpet Nozzles, with its Special new and perfect design and made by high quality brass or brass chromeplated, Which are popular and idea choice for domestic and oversea customers.
Water because of air infiltration under the refraction of light, bright, such as jade. Water is given priority to with vertical, commonly used to spray dry, commonly used for collocation center main water fountain, lighting effect is good.
With negative pressure produced by high-speed water flow inside nozzle, Big Air Mixed Trumpet nozzle can absorb the outer air into the nozzle and produce white and strong water column, which is anti-wind and suitable to all outdoor or indoor ponds. It can change the air capacity it absorbed by adjusting the outer shell. The more air it sucks, the more white the spray would be. Aerated spray nozzle also has an inside ball connector which allows 15 degrees adjustment vertically.
Specifications
Stainless Steel 304 Material:
| Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) | (kg) | |
| CYZB50 | 180-320 | 20-25 | 2-10 | straight or parabola | 2" | external thr. | Ф30 * Ф25 * 1 | 204 | 59 | 0.9 | |
| CYZB40 | 150-280 | 15-18 | 2-10 | 1 1/2" | Ф24 * Ф17 * 1 | 220 | 54 | 0.5 | |||
| CYZB25 | 120-200 | 8-3 | 2-8 | 1" | Ф17 * Ф12 * 1 | 180 | 43 | 0.4 | |||
| CYZB20 | 100-150 | 4-6 | 1.5-5 | 3/4" | Ф12 * Ф10 * 1 | 147 | 32 | 0.2 | |||
| CYZB15 | 80-150 | 2-5 | 1-3 | 1/2" | Ф12 * Ф8 * 1 | 147 | 32 | 0.2 | |||
Brass and Brass Chromplated Material:
| Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia.(mm) | (kg) | |
| CYZB50 | 180-320 | 20-25 | 2-10 | straight or parabola | 2" | external thr. | Ф30 * 1 | 220 | 63 | 0.9 | |
| CYZB40 | 150-280 | 15-18 | 2-10 | 1 1/2" | Ф24 * 1 | 200 | 53 | 0.5 | |||
| CYZB25 | 120-200 | 8-3 | 2-8 | 1" | Ф17 * 1 | 180 | 48 | 0.3 | |||
| CYZB20 | 100-150 | 4-6 | 1.5-5 | 3/4" | Ф11 * 1 | 155 | 38 | 0.2 | |||
| CYZB15 | 80-150 | 2-5 | 1-3 | 1/2" | Ф10 * 1 | 145 | 35 | 0.3 | |||
