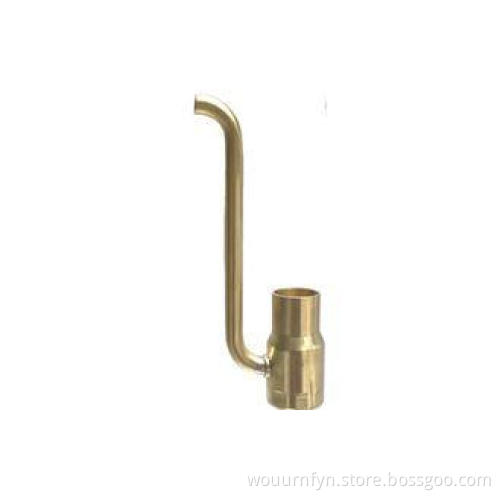

Brass / Stainless Steel Foam Fountain Nozzle Heads Landscape Water Fountains Heads
Description:
Yicheng High Quality Foam Nozzles, with its Special new and perfect design and made by high quality brass or brass chromeplated, Which are popular and idea choice for domestic and oversea customers.
Yicheng High Quality Foam Nozzles,When the water in air to form water vapor mixture of white water, swollen like spring from spring spewing out of the water, rolling in wealth.
Specifications
Stainless Steel 304 Material:
| Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) | (kg) | |
| CGPT50 | 60-100 | 20-25 | 0.4-0.8 | 0.3-0.8 | 2" | internal thr. | Ф51 * Ф20 * 1 | 295 | 68 | 0.8 | |
| CGPT40 | 50-80 | 13-20 | 0.4-0.8 | 0.3-0.6 | 1 1/2" | Ф41 * Ф18 * 1 | 280 | 52 | 0.48 | ||
| CGPT25 | 50-80 | 5-10 | 0.3-0.5 | 0.2-0.4 | 1" | Ф27 * Ф15 * 1 | 230 | 36 | 0.26 | ||
| CGPT20 | 50-80 | 3-6 | 0.2-0.4 | 0.15-0.3 | 3/4" | Ф22 * Ф13 * 1 | 215 | 32 | 0.19 | ||
Brass and Brass Chromplated Material:
| Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) | (kg) | |
| CGPT80 | 100-120 | 40-60 | 1-1.2 | 0.8-1.0 | 3" | internal thr. | Ф75 * Ф30 * 1 | 430 | 100 | 1.4 | |
| CGPT65 | 80-100 | 30-40 | 0.5-1.0 | 0.6-0.9 | 2 1/2" | Ф68 * Ф27 * 1 | 365 | 84 | 0.98 | ||
| CGPT50 | 60-100 | 20-25 | 0.4-0.8 | 0.3-0.8 | 2" | Ф54 * Ф19 * 1 | 315 | 68 | 0.72 | ||
| CGPT40 | 50-80 | 13-20 | 0.4-0.8 | 0.3-0.6 | 1 1/2" | Ф40 * Ф18 * 1 | 275 | 54 | 0.4 | ||
| CGPT25 | 50-80 | 5-10 | 0.3-0.5 | 0.2-0.4 | 1" | Ф27 * Ф15 * 1 | 250 | 37 | 0.16 | ||
| CGPT20 | 50-80 | 3-6 | 0.2-0.4 | 0.15-0.3 | 3/4" | Ф22 * Ф12 * 1 | 205 | 30 | 0.12 | ||
| CGPT15 | 50-80 | 2-3 | 0.15-0.3 | 0.1-0.2 | 1/2" | Ф15 * Ф7 * 1 | 175 | 24 | 0.1 | ||
