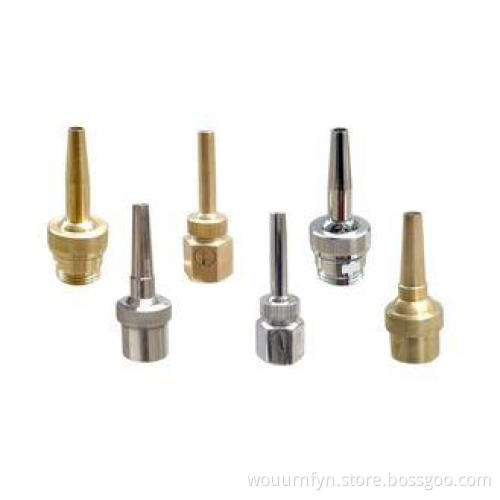

Brass / Stainless Steel Ajustable Single Shooting Water Fountain Nozzles For Musical Fountain
Quick Detail:
|
Name |
Material |
Application |
Type |
Thread |
|
Single Shooting Fountain Nozzle |
brass, brass chromplated, stainless steel 304 |
Garden, hotel, pool, pond |
Ajustable |
internal |
Description:
Yicheng High Quality Single Shooting Jet Nozzles, with its Special new and perfect design and made by high quality brass or brass with chrome-plated, and stainless steel 304, Which are popular and idea choice for domestic and oversea customers.
The Single Shooting Jet Nozzles are small and medium size precison nozzles, producing full, glass clear and wind stable jet.
It has a ball-shaped connector which can adjusted 15 along vertical direction.
These nozzles can be combined into different spraying results that is the best choice for musical fountains.
Adjustable Single Shooting nozzle is widely applied to many different kinds of fountain, especially in Musical Dancing Fountain and Program Control Fountain. It is called "adjustable" because it has an inside ball connector, which could adjust 15 degree vertically. According to different ponds shape, dimension and fountain design, adjustable straight spray nozzle can produce water features in different shapes and forms by changing spraying angle and height.
Specifications
Stainless steel 304 Material:
| Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) | (kg) | |
| ZWT65 | 70-200 | 12-18 | 3-10 | parabola or radial | 2 1/2" | external thr. | Ф20 * 1 | 235 | 80 | 1.46 | |
| ZWT50 | 70-200 | 6-8 | 3-8 | 2" | Ф13 * 1 | 225 | 73 | 0.71 | |||
| ZWT40 | 70-150 | 4-6 | 3-8 | 1 1/2" | Ф12 * 1 | 212 | 60 | 0.55 | |||
| ZWT25 | 50-150 | 3-4 | 3-8 | 1" | Ф8 * 1 | 115 | 43 | 0.19 | |||
| ZWT20 | 50-150 | 1.5-3 | 1-8 | 3/4" | internal thr. | Ф7 * 1 | 100 | 37 | 0.15 | ||
| ZWT15 | 50-150 | 0.5-1.5 | 1-6 | 1/2" | internal thr. | Ф5 * 1 | 77 | 31 | 0.16 | ||
| * Can be made all in internal thread. | |||||||||||
Brass Material:
| Model | Performance | Water Inlet | Water Outlet | Size | Weight | ||||||
| pressure (Kpa) | capacity (m3/h) | height (m) | coverage (m) | diameter (inch) | connection type | diameter (mm) | number (pcs) | height (mm) | max dia. (mm) | (kg) | |
| ZWT65 | 70-200 | 12-18 | 3-10 | parabola or radial | 2 1/2" | external thr. | Ф20 * 1 | 170 | 75 | 0.94 | |
| ZWT50 | 70-200 | 6-8 | 3-8 | 2" | Ф18 * 1 | 150 | 60 | 0.6 | |||
| ZWT40 | 70-150 | 4-6 | 3-8 | 1 1/2" | Ф12 * 1 | 117 | 53 | 0.45 | |||
| ZWT25 | 50-150 | 3-4 | 3-8 | 1" | Ф8 * 1 | 112 | 43 | 0.26 | |||
| ZWT20 | 50-150 | 1.5-3 | 1-8 | 3/4" | internal thr. | Ф8 * 1 | 92 | 32 | 0.16 | ||
| ZWT15 | 50-150 | 0.5-1.5 | 1-6 | 1/2" | internal thr. | Ф6 * 1 | 83 | 27 | 0.12 | ||
| ZWT10 | 50-150 | 0.1-1.0 | 1-4 | 3/8" | external thr. | Ф5 * 1 | 67 | 20 | 0.07 | ||
| ZWT8 | 50-150 | 0.1-0.5 | 1-3 | 1/4" | Ф4 * 1 | 61 | 21 | 0.06 | |||
| ZWT6 | 30-80 | 0.05-0.4 | 1-2 | 1/8" | Ф4 * 1 | 60 | 16 | 0.04 | |||
