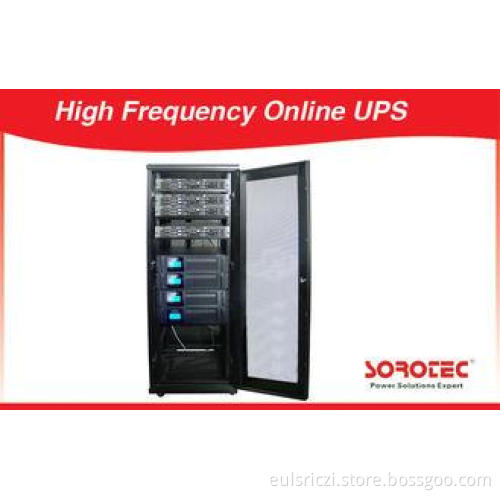

Voltage Circuit Rack Mountable UPS 6KVA with Battery bank 60-138VAC or 130-276VAC
Key Features:
- Large Blue LCD display interface in English, user-friendly
- Pure high frequency online UPS, with voltage adjustment circuit, provide stable power protection in bad operation environment
- Comprehensive electrical isolation protection and bypass protection
- Input power factor correction, reduce the harm of harmonic on grid, convenient to match small generators
- Automatic alarm, self test function
- Wide input voltage range
- Input neutral and live wire detection function and data protection function
- Main power failure, going to DC staring , Convenient and reliable; Main power recover, UPS start automatically
Applications:
This series against the key equipment, such as special communication system and computer network system, and provide more flexible and reliable power protection for equipments require strict environment of power .
Trendy & Elegant LCD Design for real-time UPS system information
Technical Specifications of Rack mount UPS HP9116C HP9316CR Series
Model |
HP9116CR 1-10KVA |
HP9316CR 10KVA |
||||||||||||||||||||
|
1KR/1KR-XL |
2KR/2KR-XL |
3KR/3KR-XL |
6KR/ 6KRXL |
10KR/ 10KR-XL |
10KR/ 10KRXL |
|||||||||||||||||
|
Capacity |
1KVA/800W |
2KVA/ 1600W |
3KVA/ 2400W |
6KVA/ 4800W |
10KVA/ 8000W |
10KVA/ 8000W |
||||||||||||||||
|
Nominal Voltage |
220/230/240VAC |
380VAC |
||||||||||||||||||||
|
Frequency |
50/60 Hz |
|||||||||||||||||||||
|
Input |
||||||||||||||||||||||
|
Voltage Range |
115~295VAC(±3VAC) |
176~297VAC(±3VAC) |
304~478VAC(±3VAC) |
|||||||||||||||||||
|
Frequency Range |
50HZ:(46~54HZ);60HZ:(56HZ~64HZ) |
|||||||||||||||||||||
|
Power Factor |
＞0.98 |
|||||||||||||||||||||
|
Output |
||||||||||||||||||||||
|
Voltage precision |
220/230/240X (1±2%)VAC |
|||||||||||||||||||||
|
Frequency precision |
50/60HZ±0.05Hz |
|||||||||||||||||||||
|
Power Factor |
0.7/0.8(option) |
|||||||||||||||||||||
|
Harmonic Distortion |
Linear Load＜3% Non-Linear Load＜6% |
|||||||||||||||||||||
|
Overload capacity |
overload(110%~150%)after 30 seconds automatically transfer to bypass, it recover after normal load |
|||||||||||||||||||||
|
Current Crest Ratio |
3∶1 |
|||||||||||||||||||||
|
Transfer time |
0ms(AC→DC) |
|||||||||||||||||||||
|
Battery |
||||||||||||||||||||||
|
DC voltage |
36VDC |
96VDC |
240VDC |
|||||||||||||||||||
|
Recharge time |
5 hours to 90% |
|||||||||||||||||||||
|
Charge Current |
1A |
4A |
1A |
8A |
1A |
8A |
2.0A/4.2A5.6A(option) |
|||||||||||||||
|
Panel Display |
||||||||||||||||||||||
|
LCD |
Display input and output voltage, frequency, battery voltage, battery capacity, and the percentage of load |
|||||||||||||||||||||
|
Communicate |
||||||||||||||||||||||
|
Communicate interface |
RS232, SNMP card(option), USB port(option) |
|||||||||||||||||||||
|
Working Environment |
||||||||||||||||||||||
|
Temperature |
0~40℃ |
|||||||||||||||||||||
|
Humidity |
0~95% non-condensing |
|||||||||||||||||||||
|
Storage Temperature |
-25℃~55℃ |
|||||||||||||||||||||
|
Elevation |
＜1500 meter |
|||||||||||||||||||||
|
Noise Level(1meter ) |
＜45dB |
＜50dB |
||||||||||||||||||||
|
Physics Characteristic |
||||||||||||||||||||||
|
Weight(KG) |
N.W |
16.5 |
9 |
26 |
11.5 |
26 |
12.5 |
18.5 |
18.5 |
25 |
32 |
25 |
32 |
|||||||||
|
G.W. |
18.5 |
11.5 |
28 |
14.5 |
28 |
15 |
21.5 |
21.5 |
28.2 |
35 |
28.2 |
35 |
||||||||||
|
Dimension (WXDXH) |
447x450 x130 |
447x600 x130 |
447x450 x130 |
447x600 x130 |
447x450 x130 |
447 x600x130 |
447x600 x177 |
|||||||||||||||
HP9116CR HP9316CR Series Back Panel Description
EMC:GB7260.2/IEC62040-2 GB/17626.2~5/IEC61000-4-2~5 SAFETY:GB4943
Note: Product specifications are subject to change without further notice
