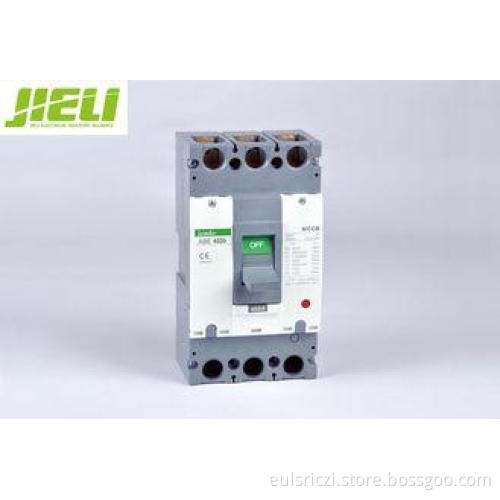

GB14048.2 203A 3P / 4P MCCB Moulded Case Circuit Breaker 16A ~ 630A ABS-33b
Quick Detail:
|
Place of Origin: |
Zhejiang China (Mainland) |
Brand Name: |
JIELI |
Model Number: |
JL-ABE moulded case circuit breaker |
|
Type: |
Moulded Case Circuit Breaker 100,160,250,400,630D/N/H/L;1250D/N |
Poles Number: |
4 |
Breaking capacity: |
70KA-150KA |
|
Number of poles: |
1P,2P,3P,4P |
Certificate: |
CE |
Standard: |
IEC60947-2 |
Description:
JL-ABE series moulded case circuit breaker (hereinafter referred to as circuit breaker)is suitable for
circuit of AC 50HZ or 60HZ,rated current 16A~630A,insulatin voltage 750V,rated operating voltage 690V below, mainly used for low voltage distribution network to distribute energy and protect circuit and power device against overload, short circuit ,under voltage, grounding fault and so on.
By means of giving the special setting for release, JL-ABE moulded case circuit breaker can be used as starting protection circuit breaker of motor.
JL-ABE moulded case circuit breaker conform to standard GB14048.2.
Specifications:
|
Type |
2pole |
ABE-32b |
ABE-52b |
ABS-52b |
ABE-62b |
ABS-62b |
|
3pole |
ABS-33b |
ABE-53b |
ABS-53b |
ABE-63b |
ABS-63b |
|
|
Frame size(AF) |
30 |
50 |
60 |
|||
|
Rated operational voltage(V)Ue (50/60Hz) |
600 |
600 |
600 |
600 |
600 |
|
|
Rated insulation voltage(V)Ui(50/60Hz) |
690 |
690 |
690 |
900 |
900 |
|
|
Rated impulse withstand voltage(KV)Uimp |
6 |
6 |
6 |
6 |
6 |
|
|
Ultimate breaking capacity (KA,Icu AC 50/60Hz) |
220V/240V |
10 |
10 |
25 |
10 |
25 |
|
380V |
7.5/5 |
7.5/5 |
14/10 |
7.5/5 |
14/10 |
|
|
415V |
7.5/5 |
7.5/5 |
14/10 |
7.5/5 |
14/10 |
|
|
440/460V |
5 |
5 |
10 |
5 |
10 |
|
|
480/500V |
2.5 |
2.5 |
7.5 |
2.5 |
7.5 |
|
|
600V |
2.5 |
2.5 |
5 |
2.5 |
5 |
|
|
Utilization category |
A |
A |
A |
A |
A |
|
|
Endurance |
Mechanical |
8500 |
8500 |
8500 |
8500 |
8500 |
|
Electrical |
1500 |
1500 |
1500 |
1500 |
1500 |
|
|
Type |
2pole |
ABE-102b |
ABS-102b |
ABE-203b |
ABS-203b |
ABE-403b |
ABS-403b |
|
3pole |
ABE-103b |
ABS-103b |
|||||
|
Frame size(AF) |
100 |
225 |
400 |
||||
|
Rated current(A) |
5,10,15,20,30, 40,50,60,75,100 |
15,20,30,40,50, 60,75,100 |
100,125,150, 175,200,225 |
250,300, 350,400 |
|||
|
Rated operational voltage(V) Ue (50/60Hz) |
600 |
||||||
|
Rated insulation voltage(V) Ui(50/60Hz) |
690 |
||||||
