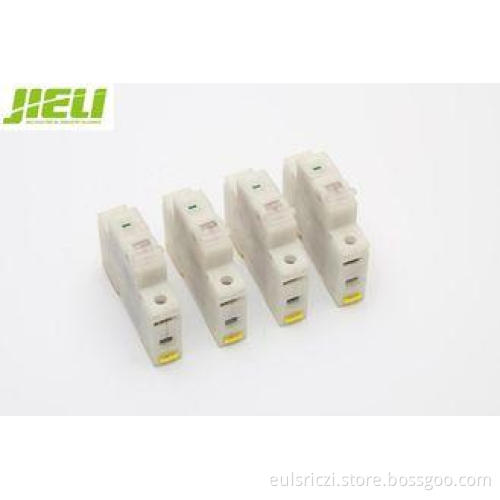

Double Pole Professional NC Mini Circuit Breaker 6000A 10000A
Quick Detail:
|
Place of Origin: |
Zhejiang China (Mainland) |
Brand Name: |
JIELI |
Model number: |
MN09 |
|
Type: |
Mini circuit breaker |
Poles Number: |
1P,2P,3P,4P, 1P+N, 3P+N |
Color: |
White |
|
Electrical life |
10000 |
Service short-circuit breaking capacity: |
3000A-10000A |
Rated impulse with stand voltage: |
6000V |
|
Electro-mechanical endurance: |
In≤100=10000 In125=8000 |
Material: |
PA66, copper, iron etc. |
Mechanical life |
4000 |
|
POLE: |
1P, 2P, 3P, 4P, 1P+N, 3P+N |
Voltage: |
AC 230(240)/ 400(415)V |
Product name: |
MN09 Mini Circuit Breaker |
Description:
1. MN09 mini circuit breaker, as a representative of "harmony" series product,JIELI owned completely independent intellectual property right.
2. MN09 Series mini circuit breaker is designed according to the market research, which means the miniature circuit breaker has a ready market.
3. MN09, this type of mini circuit breaker, has two kinds of function, overload and short circuit protection. The rated capacity of shortcircuit (ICU) of MN09 mini circuit breaker is up to 6000.
4. MN09 mini circuit breaker, this kind of product is in superior quality and the price is competitive. The most important is that JIELI electrical company is in good faith to ensure safety.
Applications:
MN09 mini circuit breaker have protective functions as shortage and overloading, and are used in lighting distribution system in industry, commerce and dwelling, and protect fractional electric motors.
Specifications:
|
Item name : |
MN09 |
|
Standard : |
IEC60898/GB10963 |
|
Product Certifications : |
CE,CB,3C |
|
Product Function : |
Short circuit protection, Over current protection |
|
Rated current(A) : |
1A-5A, 6A-63A, 80A-125A |
|
No of pole : |
1P,2P,3P |
|
Rated voltage(V) : |
230/400V |
|
Rated frequency(Hz) : |
50/60 |
|
Fiducial temperature : |
30°C |
|
Environment temperature : |
-35~70°C |
|
Installation style standard : |
35mm guide |
|
Connection type : |
Tunnel style, Pin style, U style |
|
Biggest wiring ability : |
25mm2 |
|
Magnetic tripping curve : |
B(3-5In),C(5-10In),D(10-20In) |
|
(ICU)Rated capacity of short circuit: |
6000 |
|
(ICS)Operation capacity of short circuit : |
6000 |
|
Mechanical life : |
10000 |
|
Electrical life : |
4000 |
|
Protection degree : |
IP20 |
Competitive Advantage:
1. Non-slip handle design, more comfortable, more effort.
2. Air gap design, improve the heat dissipation capacity.
3. Installation and removal without tools secure and more reliable, saving costs.
4. Busbar design, much easier installation than cable connection.
5. Colorful plating iron, prevent rust.
6. Iron up arc and down arc accelerate the movement speed of the arc, improving arcing effect, help to improve breaking capabilities.
About our company-JIELI:
JIELI Electrical is abbreviation for"Alliance of JIELI Electrical Industry",with JIELI brand and
ICEDC brand.
JIELI Electrical have 29 members and more than 2000employers,all of the plants area are
about 50000square meters.
JIELI Electrical devoted in producing low-voltage circuit breaker and other related products,
At present,JIELI main products MCB,MCCB,RCCB,Distribution box,AC contactor, Relay,Switch
and more than thousands electrical goods spare parts.
