3000A - 6000A Overloaded Mini Circuit Breaker 230v / 415v ,
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Zhejiang,China |
|---|

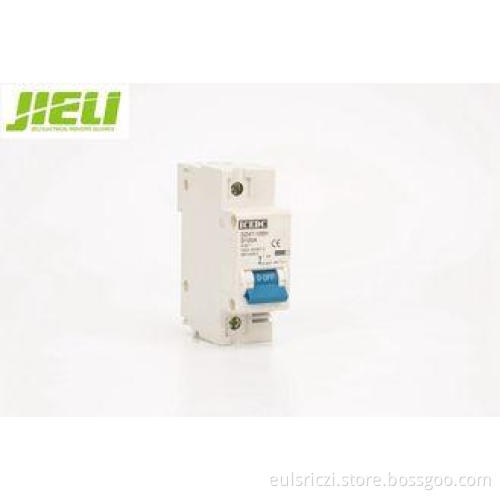

3000A - 6000A Overloaded Mini Circuit Breaker 230v / 415v , UL Circuit Breakers
Quick detail:
Place of Origin: Zhejiang china(mainland)
Brand Name: JIELI
Size: Mini circuit breaker
Usage: General Purpose
Contact Load: High Power
Certificates Obtained: UL, TUV, CQC
Number of poles(p):1p,2p,3p,4p
Rater current(A):1-63A
Rated voltage:230v/415v
Breaking capacity(A):3000-6000A
Description:
1) DZ47-100H Mini circuit breaker MCB is used in lighting distribution system or motor distribution system for protecting overload and short circuit in the systems.
2) DZ47-100H Mini circuit breaker is novel in structure, light in weight, reliable and excellent in performance.
3) DZ47-100H Mini circuit breaker has high breaking capacity and can trip quickly. The case and body of DZ47-100H Mini circuit breaker are made of highly fire-retardant and shockproof plastic.
4) DZ47-100H Mini circuit breaker, with long life, is mainly used in AC 50Hz / 60Hz single-pole 240V or
two / three / four-pole 415V circuit for overload and short circuit protection, as well as infrequent on-and-off switching electric equipment and lighting circuit in normal cases. DZ47-100H Mini circuit breaker conforms to GB10963 and IEC60898 standards
Applications:
DZ47-100H mini circuit breaker are used in lighting distribution system in industry, commerce and dwelling, and protect fractional electric motors.
Specification:
|
Electrical Properties |
Rated current |
6/10/16/20/25/32/40/50/63A |
|
Rated operating voltage |
230/415V |
|
|
Nominal Frequency |
50/60Hz |
|
|
Breaking capacity |
3000-6000A |
|
|
Operating temperature |
-5°C - 40°C |
|
|
Degree of Protection |
IP20 |
|
|
Conductor cross section (minimum allowable) |
25mm² |
|
|
Minimum number of power moves |
6000 |
|
|
Minimum number of mechanical operations |
20000 |
|
|
Operation curve |
B/C/D |
|
|
Type Of Assembly |
FOR RIEL DIN 35mm |
|
|
Features |
MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C), 3 to 5 times rated current ( Type B ), 10 to 14 times rated current ( Type D ) |
|
|
BIMETAL: ensures the breaker trip when overloaded. |
||
|
ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit. |
||
|
Testing For Acceptance |
Before receiving the circuit breakers (breakers), customers may perform the tests may be necessary to ensure compliance with the technical specifications. |
|
|
Packing |
The packaging is sure that withstand any adverse conditions during transport and handling to the warehouse of customers |
|
Competitive Advantage:
DZ47-100H Series mini circuit breaker has features: attractive, compact, light, reliable performance, higher breaking capacity, quick tripping and guide rail type installation.
The case and components of DZ47-100H mini circuit breaking adopts high flame retardation and impact resistance plastics with long serving life.
DZ47-100H mini circuit breaker is mainly used in circuit with AC 50Hz, 1P, 220V-400V, 2P, 3P, 4P400V, for overload and short circuit protection.
And DZ47-100H mini circuit breaker also can be used for normal unfrequented on/off electrical device and lighting circuit.
Why choose us:
1. Factory :Since 2002
2. Team: More than 300 workers (10% of our personnel are superior technicians)
3. Approval:ISO9001:2000, CE, CB, CCC and PICC, and especially we got UL certificate for air-conditioning
AC contactors in 2005
We always consider quality and service first. Our policy is "Quality First; Improve Technology; Expecting Future". Our tenet is "Product & Brand Competition; Quality Serve the world". We hereby would like to work together with more new and old clients to realize our mutual goals of "more excellent products, more competitive prices, and more personalized service".
Our service:
1. Samples: provide free samples.
2. Package: all products will be well packed before shipping.
3. Warranty: all products have 2-5 years warranty.
4. Delivery: with 30days after received the deposit.
5. Provide OEM and ODM service.
6. Any of your idea we can help you to design and put it into production.
7. Provide helping for building factories, such as: spare parts, technical questions, financial matter,
management problem , approach of sales.
