High Frequency Online UPS 1KVA - 20KVA With Elegant LCD Des

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

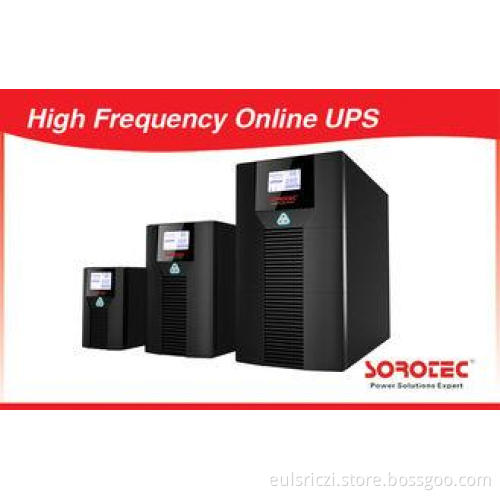

High Frequency Online UPS 1KVA - 20KVA With Elegant LCD Design

High Frequency Online UPS

HP9115C Series 1-10KVA (1Ph in / 1Ph Out)

HP9115CSeries 10-20KVA (3Ph in / 1ph out)

Key Features:

1. Its cut-edge digital technology of DSP (Digital Signal Professor), can greatly improve the products performance and system reliability, and deliver a compact integration with higher power density ;

2. Output power factor up to 0.8/0.9- applicable to the tendency of future load evolution, and deliver higher payload capacity;

3. Higher payload and overload capability, better load compatibility, and suitable for various load type;

4. Total power factor up to 90% can minimize the power loss of UPS and utilization cost for user;

5.High Scalability: fully meet the customer's demands;

6. Emergency Power Off (EPO): UPS can be instantly shut off in case of any emergency;

7. Powerful Interference immunity capability in compliance with EMC requirements of IEC61000-4, deliver your device a clean electric environment.

Trendy & Elegant LCD Design for real-time UPS system information:

Applications:

Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom…

Technical Specifications of Online UPS HP9115C 1-3KVA:

Model		HP9115C 1-10KVA
		1KT	1KT-XL	2KT	2KT-XL	3KT	3KT-XL
Rated Power		1KVA/800 W		2KVA/1600 W		3KVA/2400 W
Rated Voltage		220/230/240VAC
Rated Frequency		50/60 Hz
Input
Voltage Range		115~295VAC(±3VAC)
Frequency Range		50HZ:(46~54HZ);60HZ;(56HZ~64HZ)
Power Factor		>0.98
Output
Voltage Regulation		220/230/240X (1±2%)VAC
Frequency Regulation		50/60Hz ±0.05Hz
Power factor		0.8 6-10k 0.9/0.8(Optional)
Voltage distortion		Linear load<3% Non-linear load<6%
Overload Capability		110%~150% for 30s change to bypass model,Recover after load normal
Current Crest Ratio		3:1 max.
Transfer time		0 ms(AC mode→DC mode);(AC mode→Bypass<4ms)
Battery
DC Voltage		36VDC		72VDC		96VDC
Recharge Time		5 hours to 90% (it means standard model which battery inside UPS)
Recharge Current		1A	4A/8A(Optional)	1A	4A/8A(Optional)	1A	4A/8A(Optional)
Display
LCD		UPS status, input/output voltage and frequency,battery voltage, capacity,load temperature,history records, adjust Voltage, ECO mode
Communication
Interface		Smart RS232, SNMP (Optional) , USB(Optional)
Environment
Operation Temperature		0~40°C
Humidity		0~95% non-condensing
Storage Temperature		-25°C~55°C
Sea level elevation		<1500 m
Noise Level(1m)		<45dB		<50dB		<50dB
Physical Characteristic
Weight(KG)	N.W.	12	6.5	23	10.5	31.5	14
	G.W.	14	8	25.5	13	33.5	16.5
Dimensions: ( W x D x H )mm		145X335X220		109X383 X318		190 X433 X318
