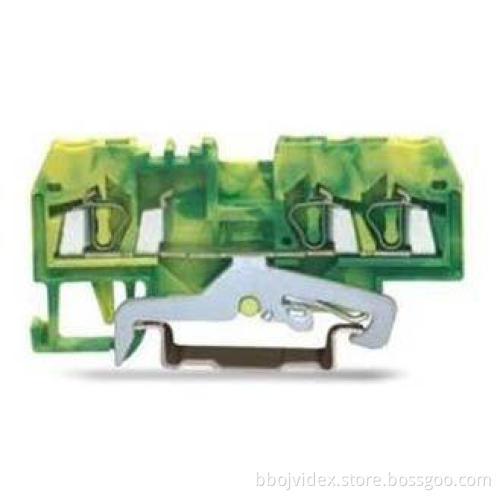

3 Conductor Ground Rail 800V 24A Spring Terminal Block with Cage Clamp SP225
Quick details
3-Conductor Ground Terminal Block
0.2-2.5mm2/24-14AWG
800V 24A 600V 20A 25A
Spring-clipping Connect Ways.
Order No.:225957(Green-Yellow)
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, and maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer's requests.
◆ Mounted on SP35 standard rail (steel or aluminum).
|
Article: |
3-Conductor Ground Terminal Block |
|||
|
Wire Range: |
0.2-2.5mm2/24-14AWG |
|||
|
|
IEC |
UL |
CSA |
EN |
|
Rated Voltage: |
800V |
600V |
600V |
800V |
|
Rated Current: |
24A |
20A |
25A |
24A |
|
Size (mm/in): |
5×64×28mm/0.197×2.52×1.1 in |
|||
|
Strip length (mm/in): |
8-9 mm/0.33in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
Spring-clipping |
|||
|
Entry Type: |
Front-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
|
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Green-Yellow |
|||
|
Packing: |
100PCS |
|||
|
Name |
Order No. |
|
End-and Intermediate |
225151(Gray)225152(Orange) |
|
Adjacent jumper |
225301 |
|
Protective Warning Marker |
225701 |
